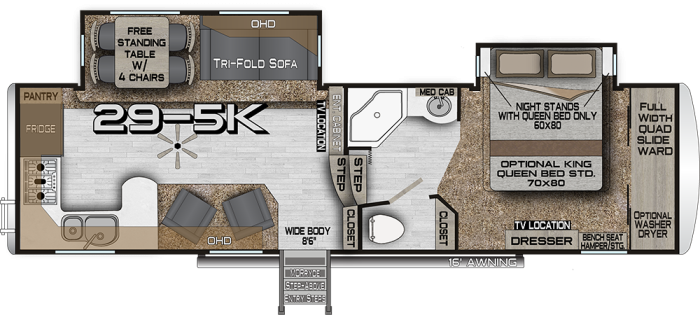

AF 29-5k

Available Options Photo Gallery

Specifications:

Dry Axle Weight (approx. Lbs.): 10059
Dry Hitch Weight (approx. Lbs.): 2895
Net Carrying Capacity: 3346
Gross Dry Weight (approx. Lbs.): 12954
Gross Vehicle Weight (GVWR) – Lbs.: 16300
Exterior Length (approx. w / hitch): 35’10”
Exterior Height (approx.): 13’6″
Exterior Width (approx.): 8’6″
Tire Size: LT235/85R16
Load Range: G
Fresh Water Capacity (w/water heater, approx. gal.): 88
Gray Water Tank (approx. gallons): 67/35
Black Water Tank (approx. gallons): 65
LPG Capacity (approx. lbs): 80
Sleeping Capacity: 4
CSA – Canadian Dealers Only: Yes
Auto Ignition Furnace (1,000 BTUs): 35

Features / Options

Standard Features

Northwood Built Ironhorse Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
Corona Treated Fiberglass
Laminated, Multi-Layered Substrate Walls & Floor
High Density Block Foam Insulation
Wide-Body Floorplan/MORryde Step Above w/Flip Tread
E-Z Lube Axles
Heavy Duty Greaseable Suspension / 2″ Receiver Hitch
16″ Aluminum Wheels / Tires & White Mod Spare
MORryde RPB Pin Box / 6 Point Leveling System
Bed Slide / Flush Floor Super Slide
Four Seasons Insulation With R-18 Ceiling
R-15 Reflective Foil Insulation in Roof / Slides
Heated Holding Tanks / Cathedral Arched Ceiling
Aerodynamic One Piece Front Cap
2 Independently Switched LED Hitch Lights
Fiberglass Rear Cap / LED Cap Accent Lights
LED Interior & Exterior Lighting / Rear View Camera Ready
Exterior HD Ladder / SolX 4 – 400 Watt Solar Package
Exterior Convenience Center
SLAM Latch Luggage Doors
LPG Quick Connect & Black Water Flush System
Entry Door Friction Hinge
Exterior Shower
16 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
12V LED Awning w/Adjustable Pitch HW
Omni-Directional TV Antenna
Outside Speakers/Battery Disconnect
Frameless Thermal Pane Windows w/Custom Wood Trim
Generator Ready / Satellite Ready
Electric Power Reel / Digital Thermostat/50 Amp Service
Interior Command Center
Roller Bearing Drawer Glides
Slow Rise Night Shades
40″ 110 LED Smart TV & AM/FM Stereo w/Bluetooth
Smoke, LPG & CO Leak Detectors / Charge Wizard w/Li Switch
Free-Standing Table With 4 Chairs
2 Cross-Stitch Swivel Rocker-Recliners
Tri-Fold Sofa With Decorative Throw Pillows
Solid Surface Kitchen Countertops
1.5 Cu Ft Over-The-Range, Convection Micro w/Range Hood
14 Cu Ft Refer (Opt w/SolX 6 Min.)
Dayliter Kitchen Skylight w/ Shade / Ceiling Fan
Premium Fan Vent w/Remote/Tstat/Rain Sensor (Kitchen)
Solid Surface Bathroom Countertops w/SS Sink
Exhaust Only Premium Fan Vent – Bathroom
Porcelain, Foot-Pedal Toilet / Bath Skylight
Garden Shower / Glass Enclosure / Bathroom Courtesy Light
Telescoping Lighted Vanity Mirror / Lock Box
NW TruRest King Mattress w/UltraDeck Sleep System
Premium Fan Vent w/Remote/Tstat/Rain Sen (Bedroom)
Hardwood Dresser Top / Bedroom Starlite w/ Shade
USB Charging Ports & 110 Outlets on Both Sides of Bed



Options

Booth With Dream Dinette – No Charge
Surround-Soundbar
Slide Tray in Pass Thru
Dinette Slide Topper
Bedroom Slide Topper
Weatherguard Main Awning
CSA (Canadian Dealers Only)
32″ 110V LED Smart TV Bedroom
15K Low Pro Air Conditioner w/Ducting
15K Air Conditioner w/ Ducting
2nd A/C (Low Pro 13.5K) – Replaces Bdrm Fan Vent
Holding Tank Heat Pads (All Tanks)
Fireplace
5.5 Onan Gold LP Generator
SolX 6 + 200 Watts of Solar
SolX 8 + 400 Watts of Solar
SolX 10 + 600 Watts of Solar
Washer/Dryer Combo
Winegard Carryout G2+ Sat Dish (DISH/DIRECT)
(HD Sat-Call For Options)
3000 Watt Inverter w/400AH Lithium Battery
400AH Lithium Battery
FoxForward Multi-plex System
100AH Lithium Battery
Theater Seating 68″ (Del. Tri-Fold Sofa)
RV BBQ
Rear View Camera
Gateway Router
