Specifications:
Dry Axle Weight (approx. Lbs.): 7190
Dry Hitch Weight (approx. Lbs.): 2440
Net Carrying Capacity: 2370
Gross Dry Weight (approx. Lbs.): 9630
Gross Vehicle Weight (GVWR) – Lbs.: 12000
Exterior Length (approx. w / hitch): 29’2″
Exterior Height (approx.): 12’10”
Exterior Width (approx.): 8′
Tire Size: ST235/80R16
Load Range: E
Fresh Water Capacity (w/water heater, approx. gal.): 82
Gray Water Tank (approx. gallons): 75
Black Water Tank (approx. gallons): 35
LPG Capacity (approx. lbs): 60
Sleeping Capacity: 4
CSA – Canadian Dealers Only: YES
Auto Ignition Furnace (1,000 BTUs): 30
Features/Options:
Standard Features
Northwood Built Ironhorse Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
Corona Treated Fiberglass
Laminated, Multi-Layered Substrate Walls
Aerodynamic Front Fiberglass Cap / Cathedral Arched Ceiling
E-Z Lube Axles
Equaflex Axle Suspension System
16″ Aluminum Wheels / Tires & White Mod Spare
Powered Dual-Motor Sliding Stab Jacks, Rear
Ward Slide / Sofa Slide / MORryde Step Above w/Flip Tread
All-Conditions/Four Seasons Insulation With R-18 Ceiling
R-15 Reflective Foil Insulation in Slide / Roof
Heated Holding Tanks
Rota-Flex Suspension Pin Box
Diamond Plate Bumper Wrap
Omni-Directional TV Antenna
Exterior HD Ladder
Exterior Convenience Center / Rear View Camera Ready
Exterior Shower / Black Water Flush System
Entry Door Friction Hinge
10 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
12V LED Awning w/Adjustable Pitch
SolX 4 – 400 Watt Solar Package
Battery Disconnect
Frameless Thermal Pane Windows
Generator Ready / Satellite Ready
Exterior Security Light
LED Interior, Exterior & Decorative Lighting

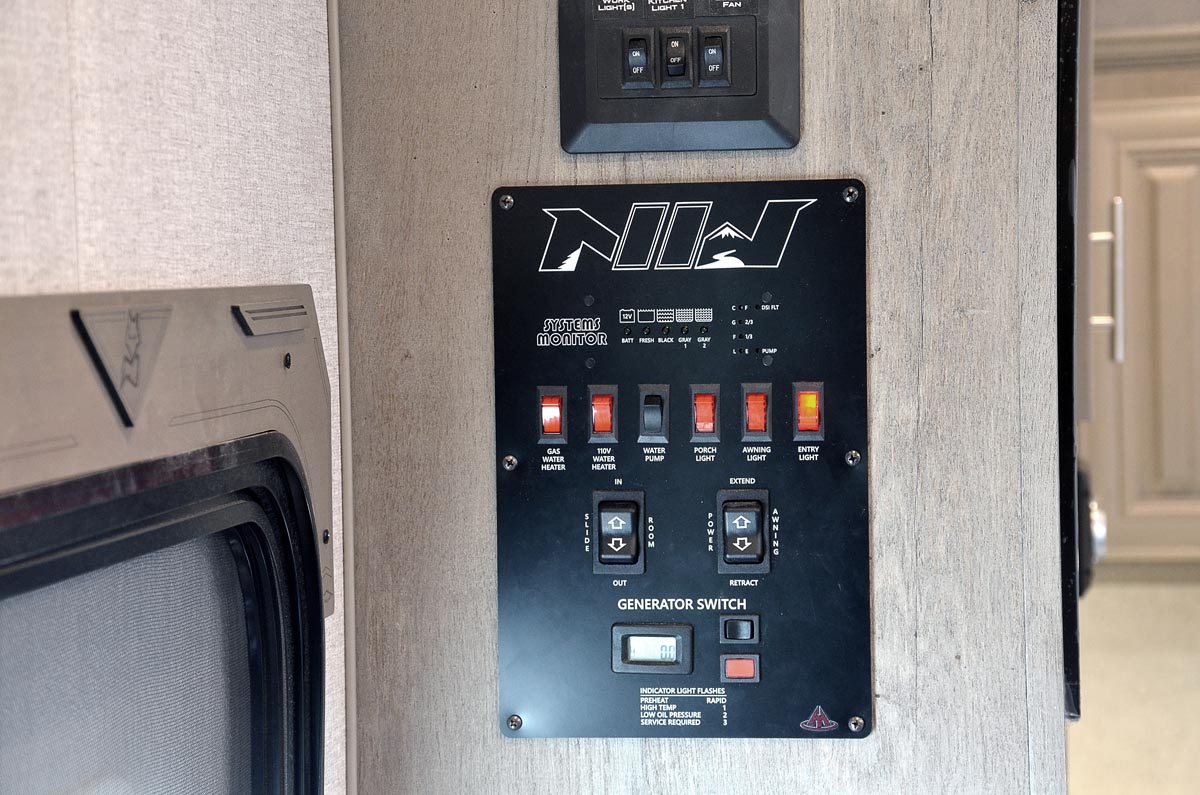

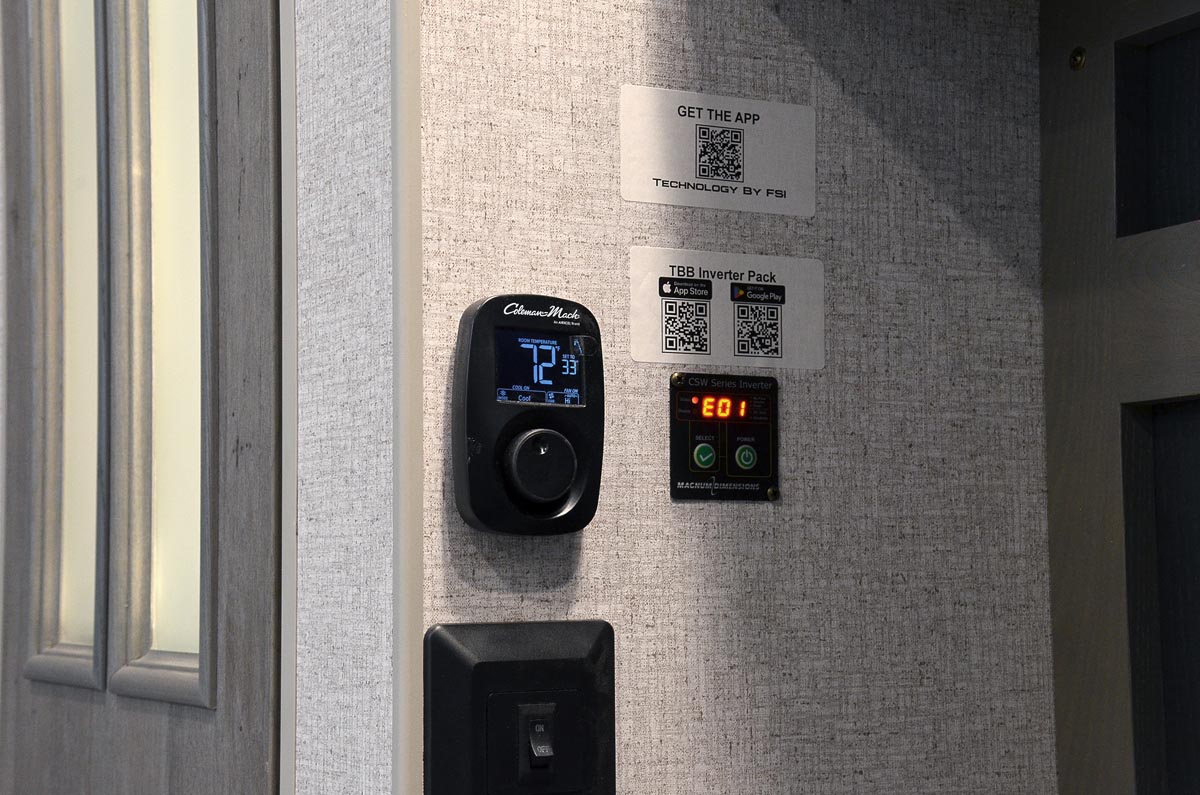

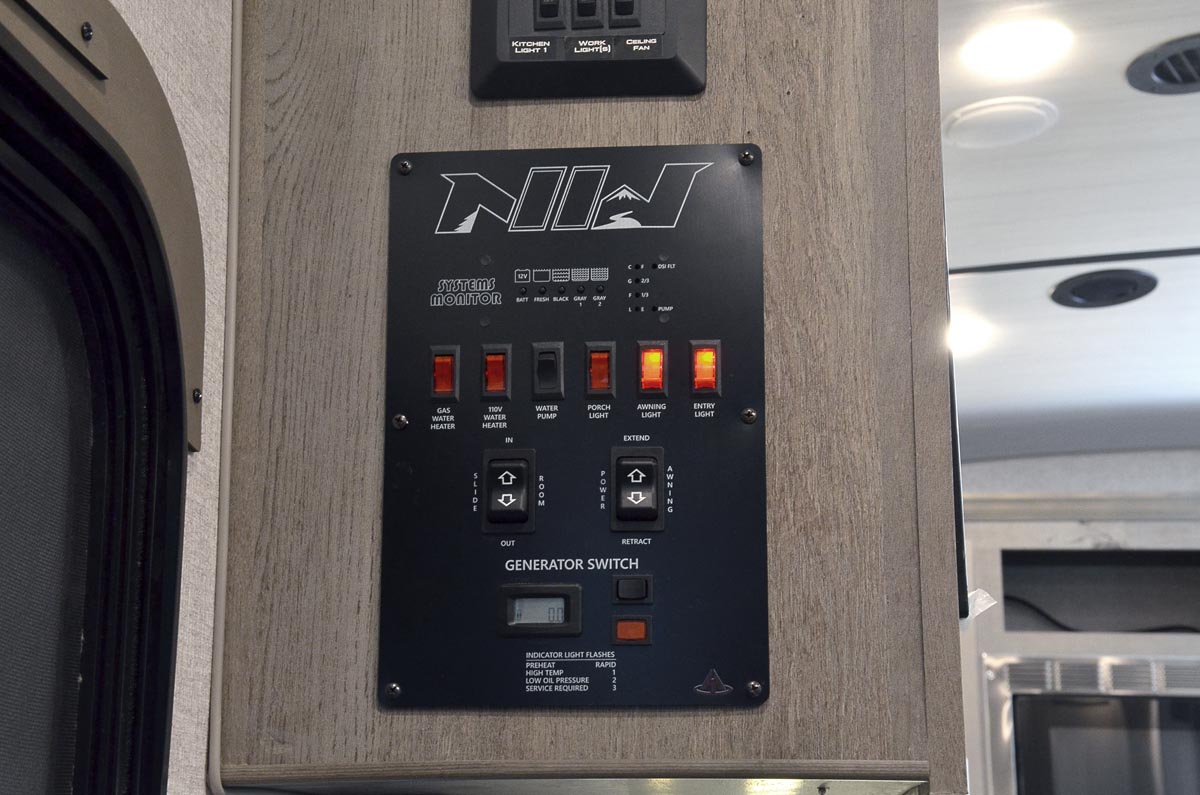

Interior Command Center / Digital Thermostat
Charge Wizard w/Li Switch / Inverter Ready
Slow Rise Night Shades

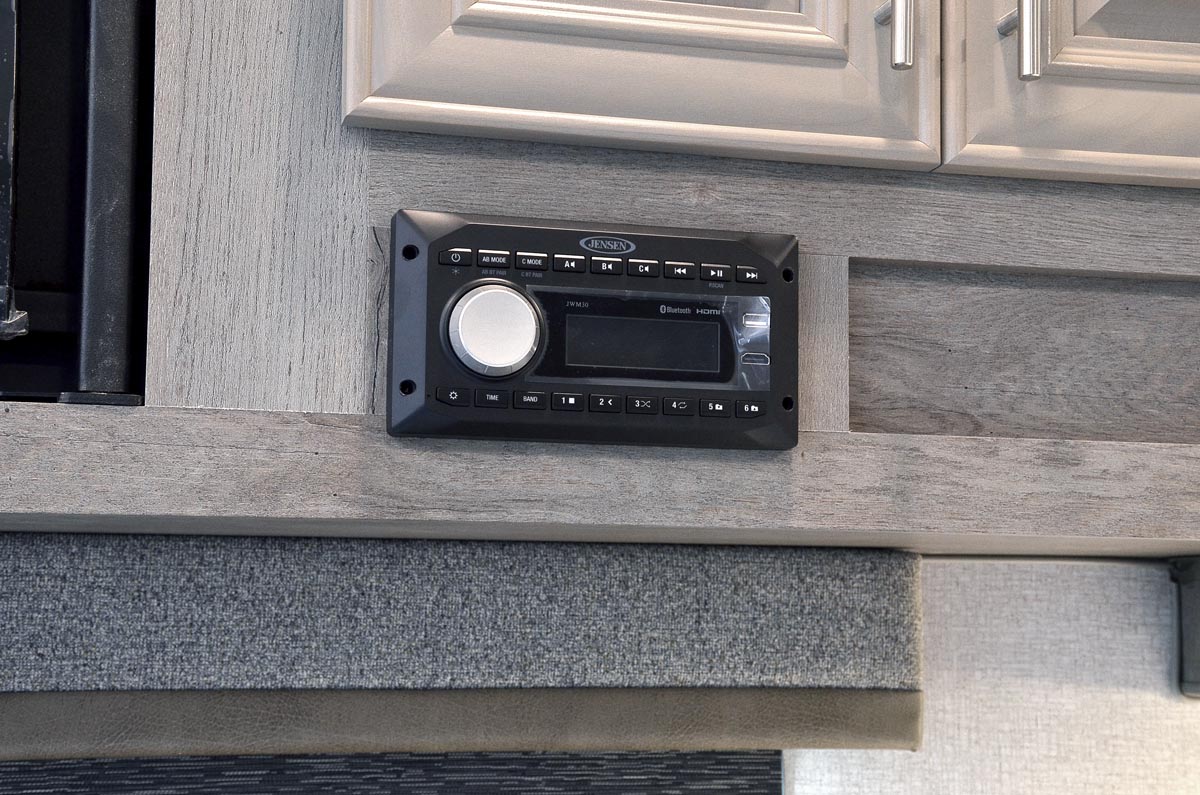

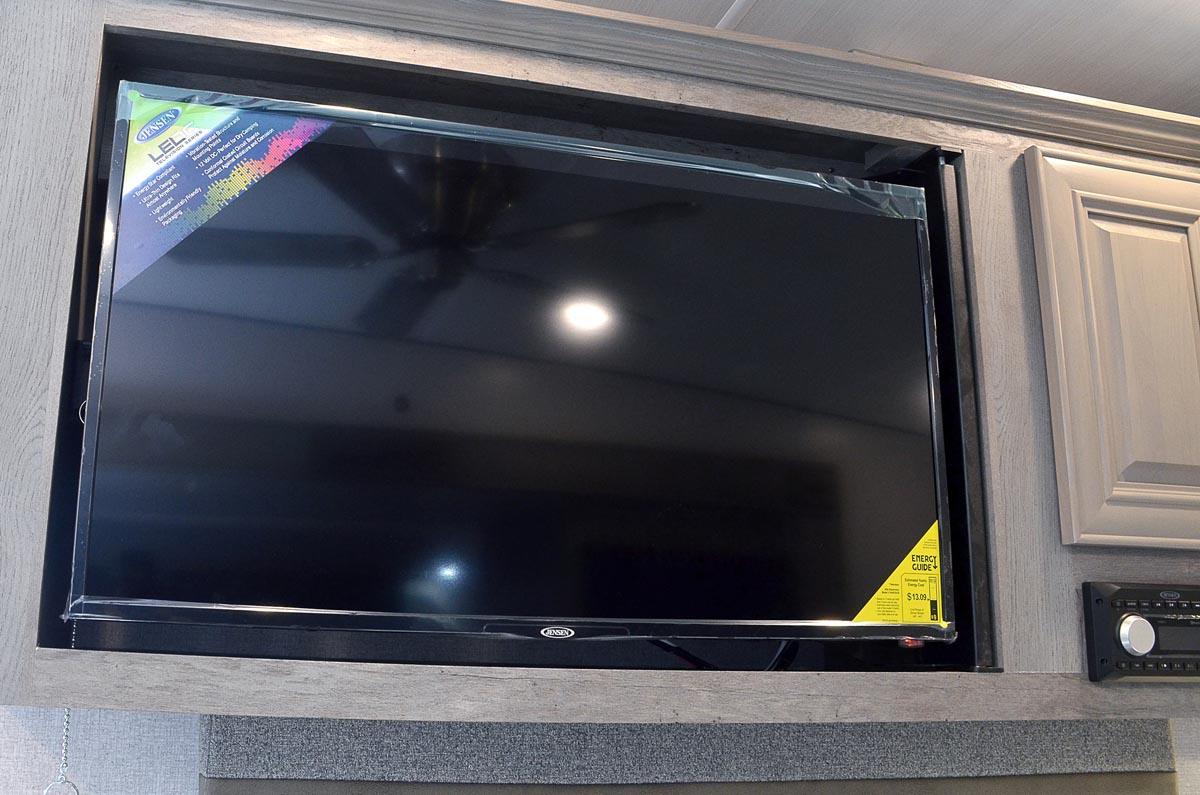

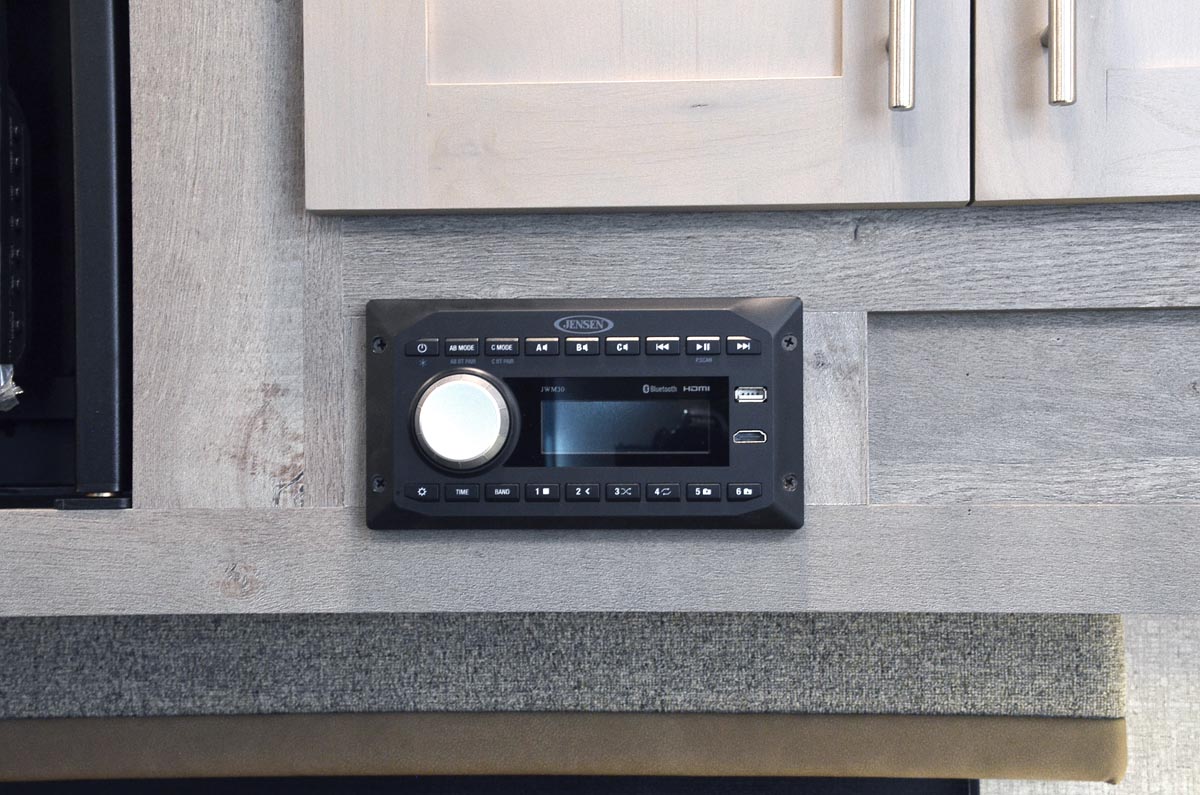

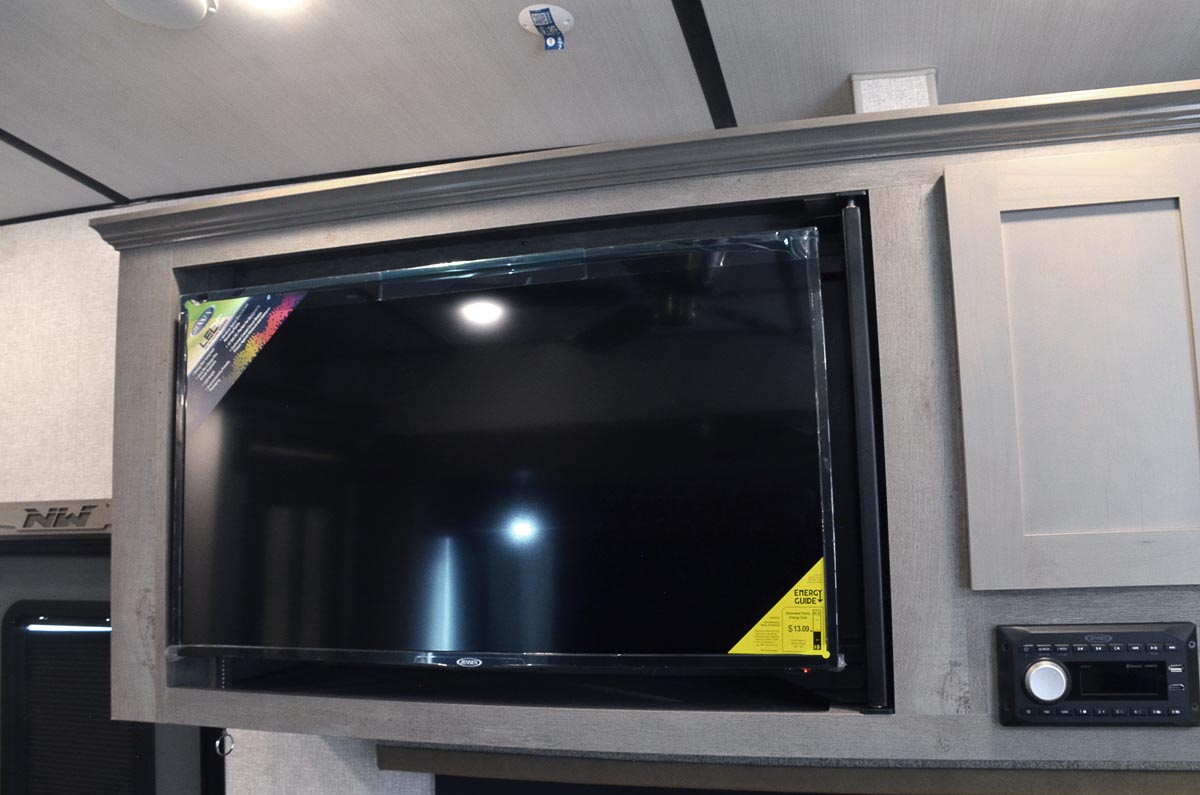

40″ 12v LED TV & AM/FM Stereo w/Bluetooth
Premium Fan Vent w/Remote/Tstat/Rain Sen (Bedroom)

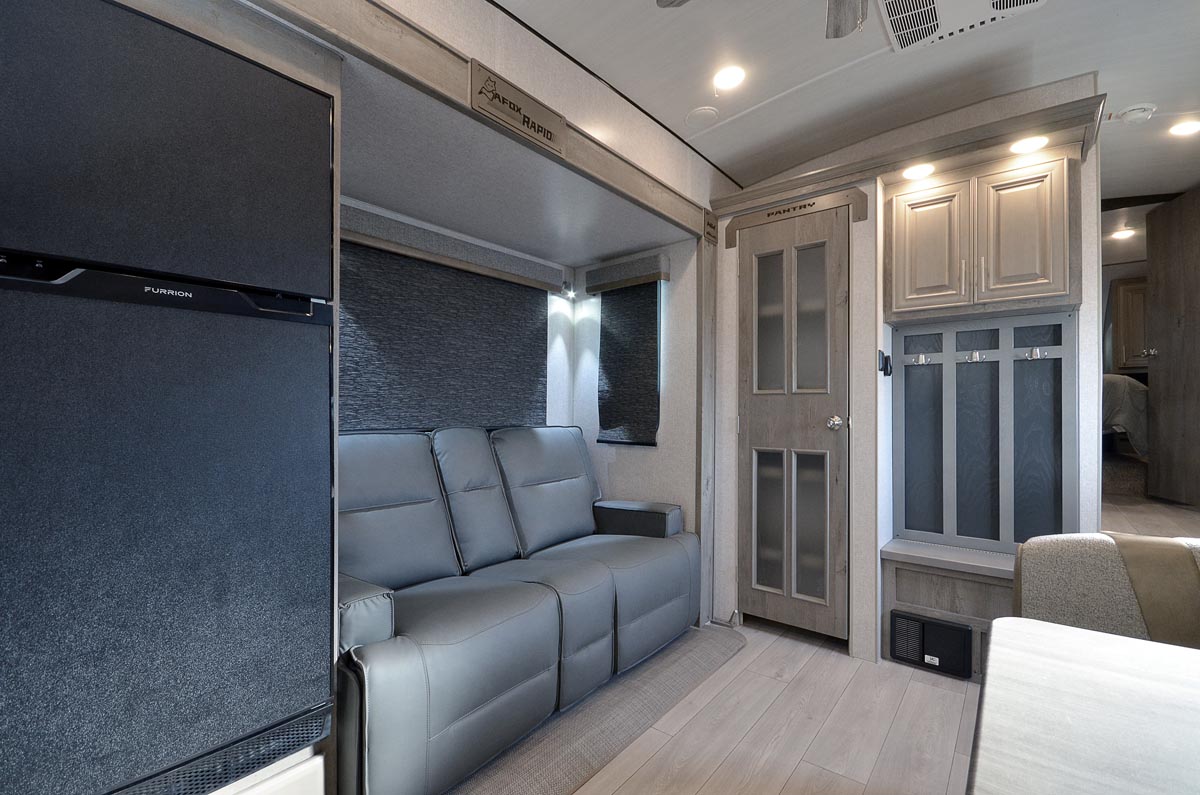

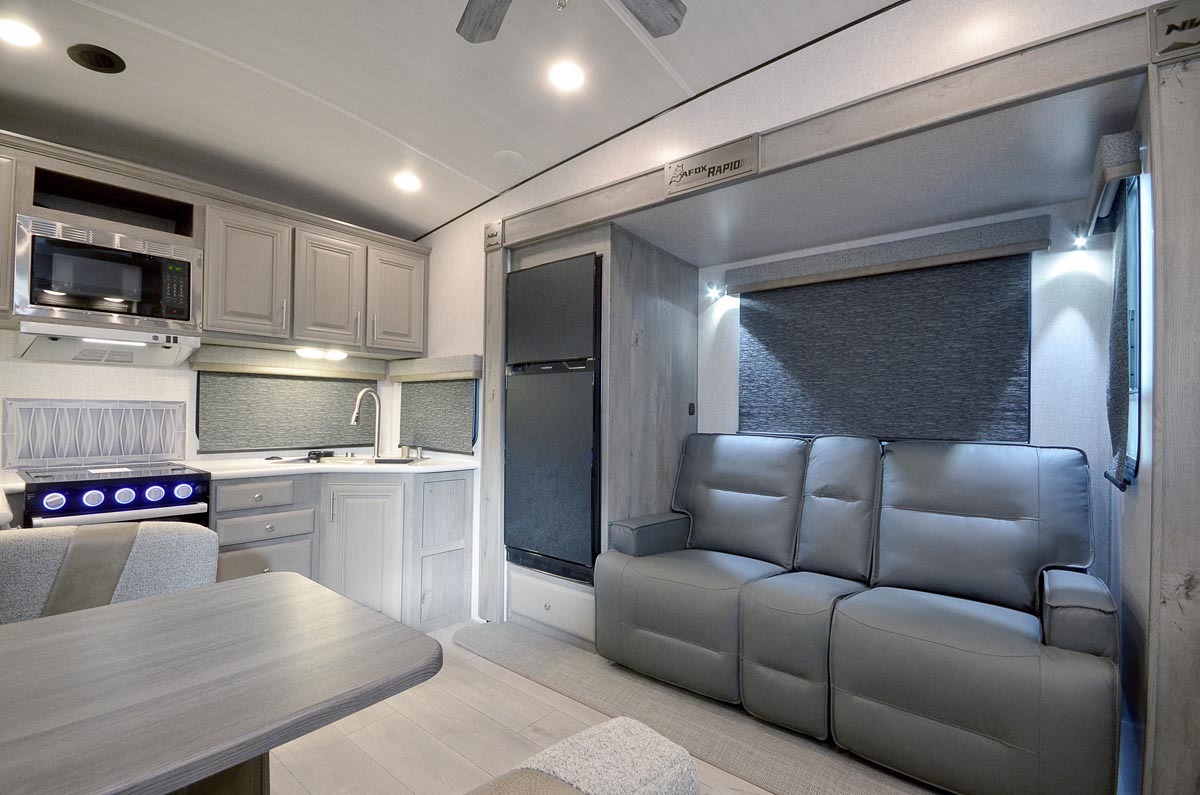

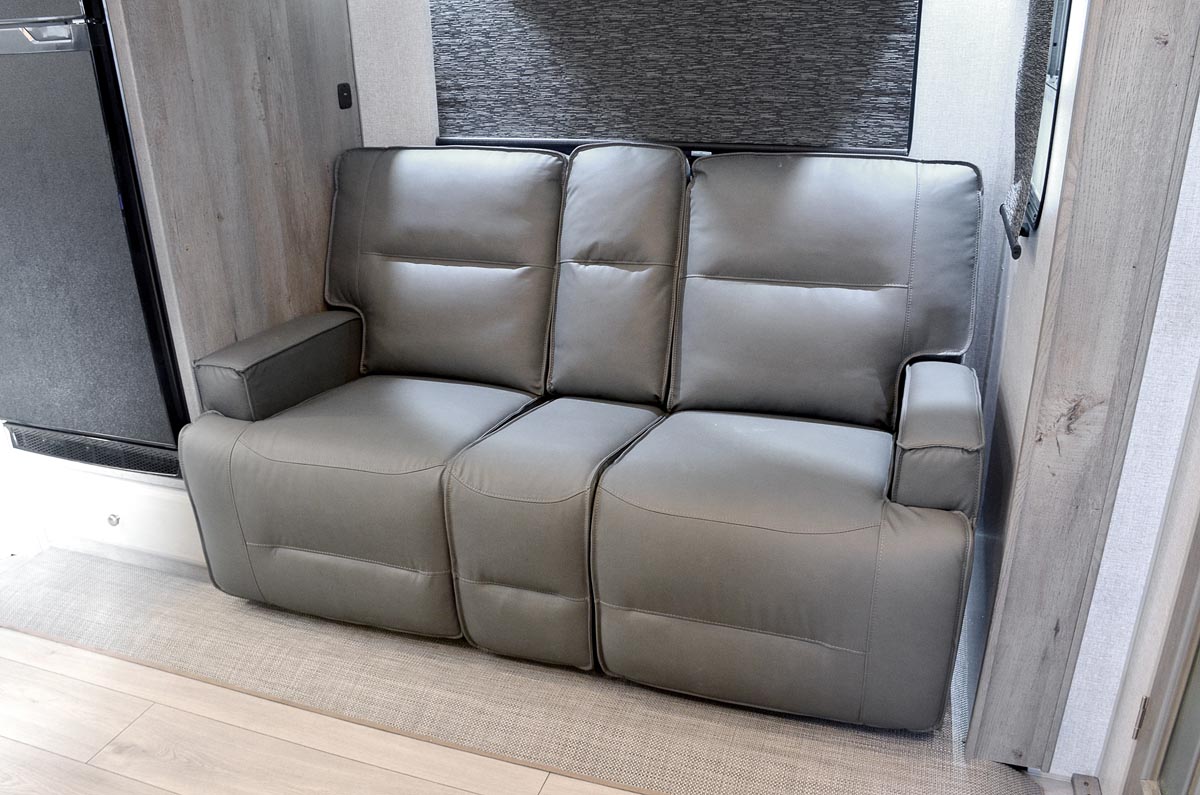

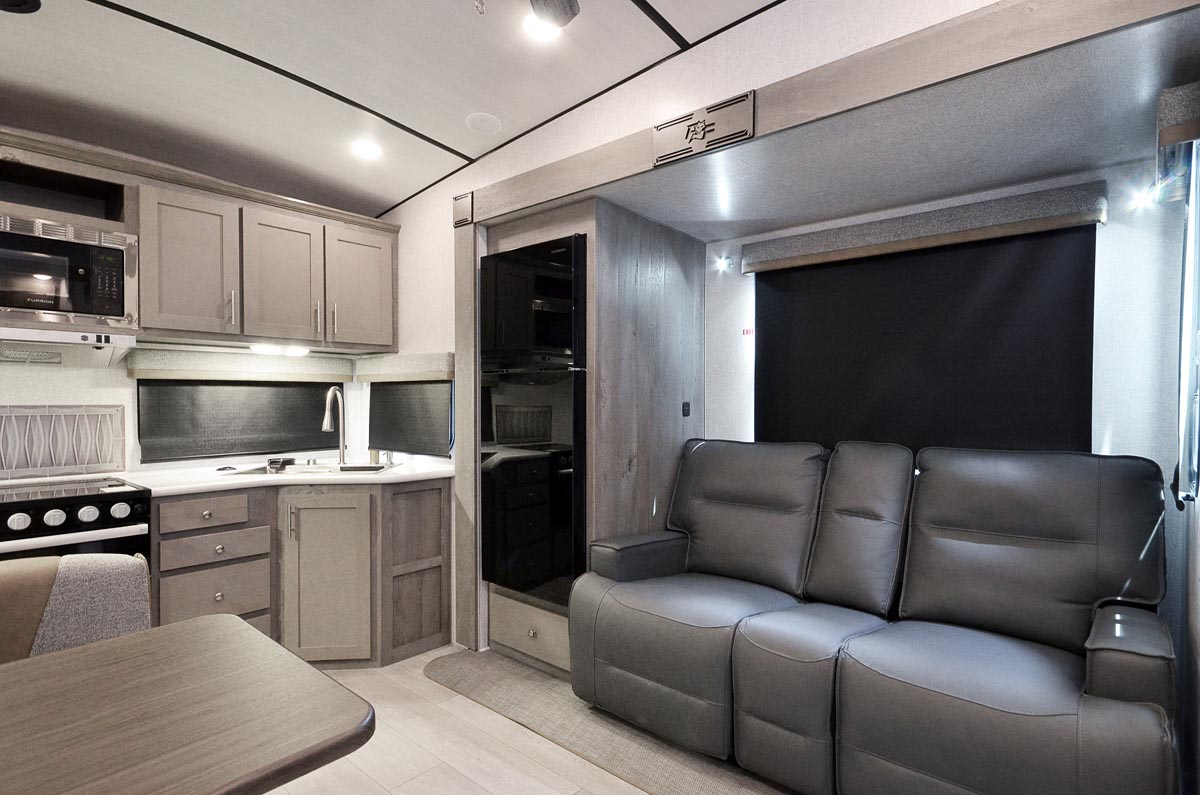

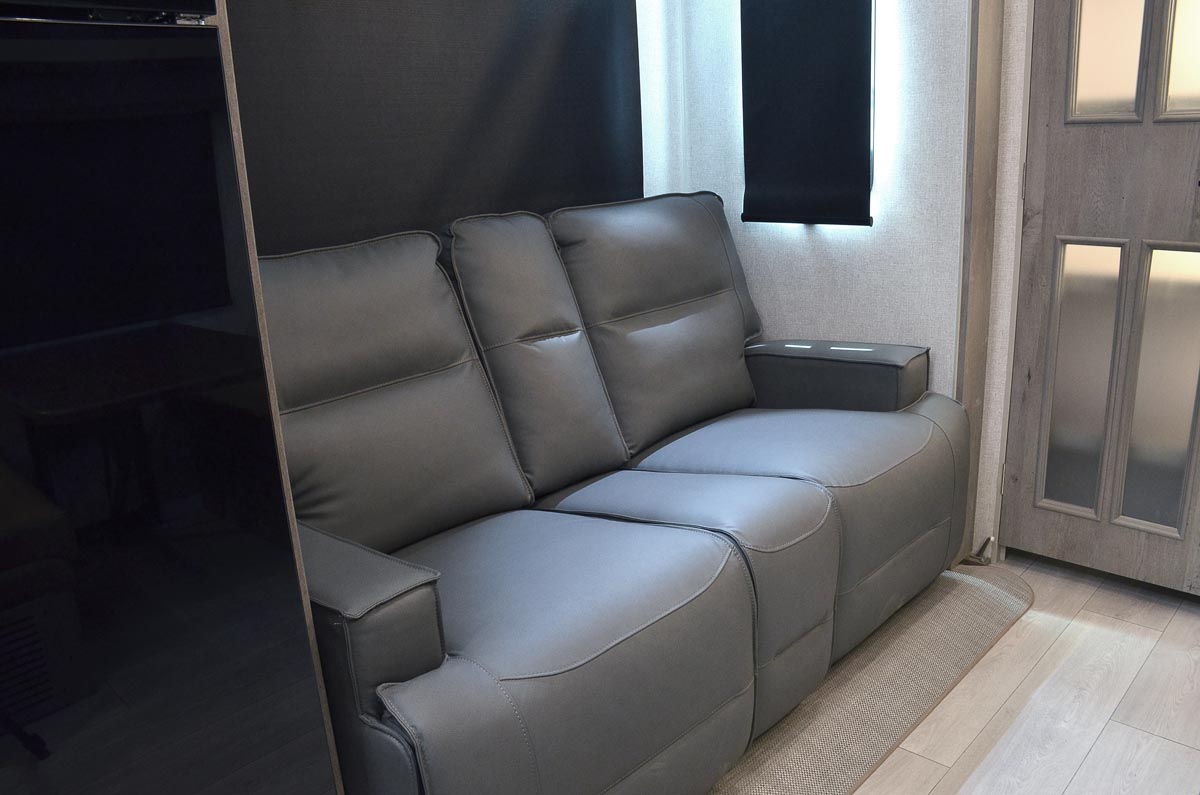

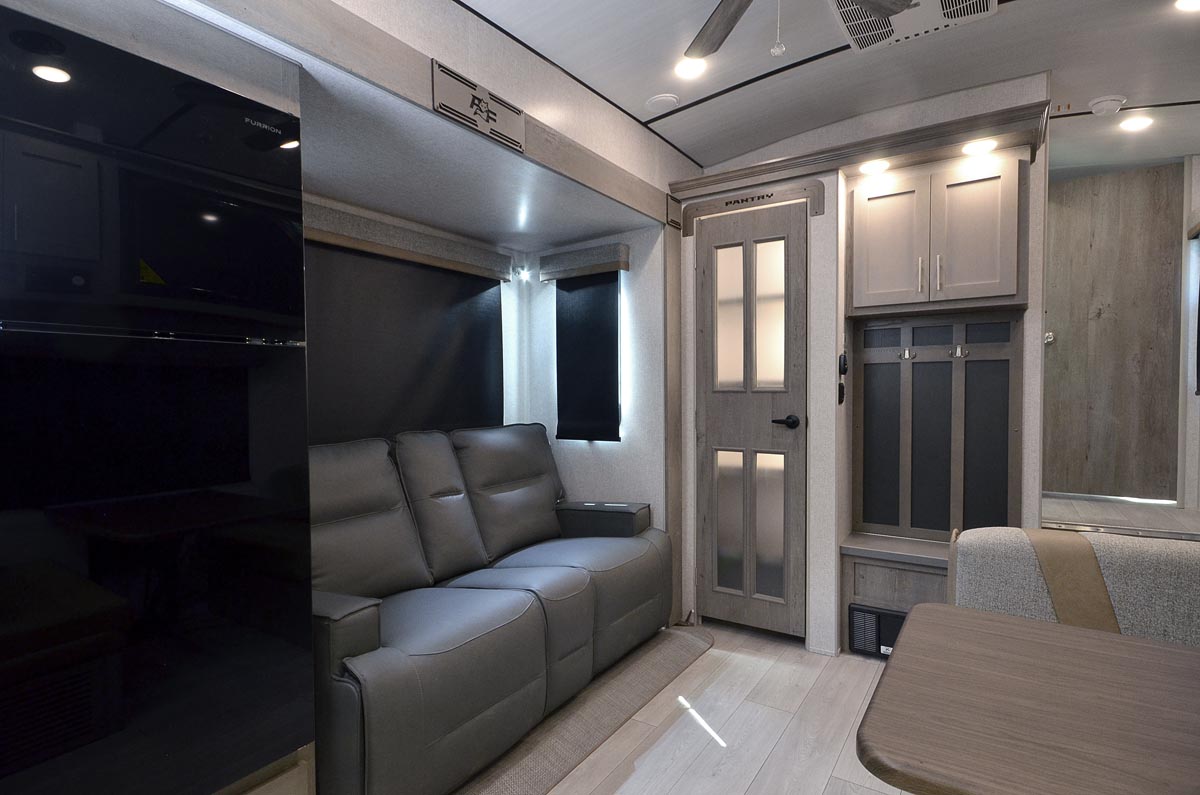

Tri-Fold Sofa With Decorative Throw Pillows

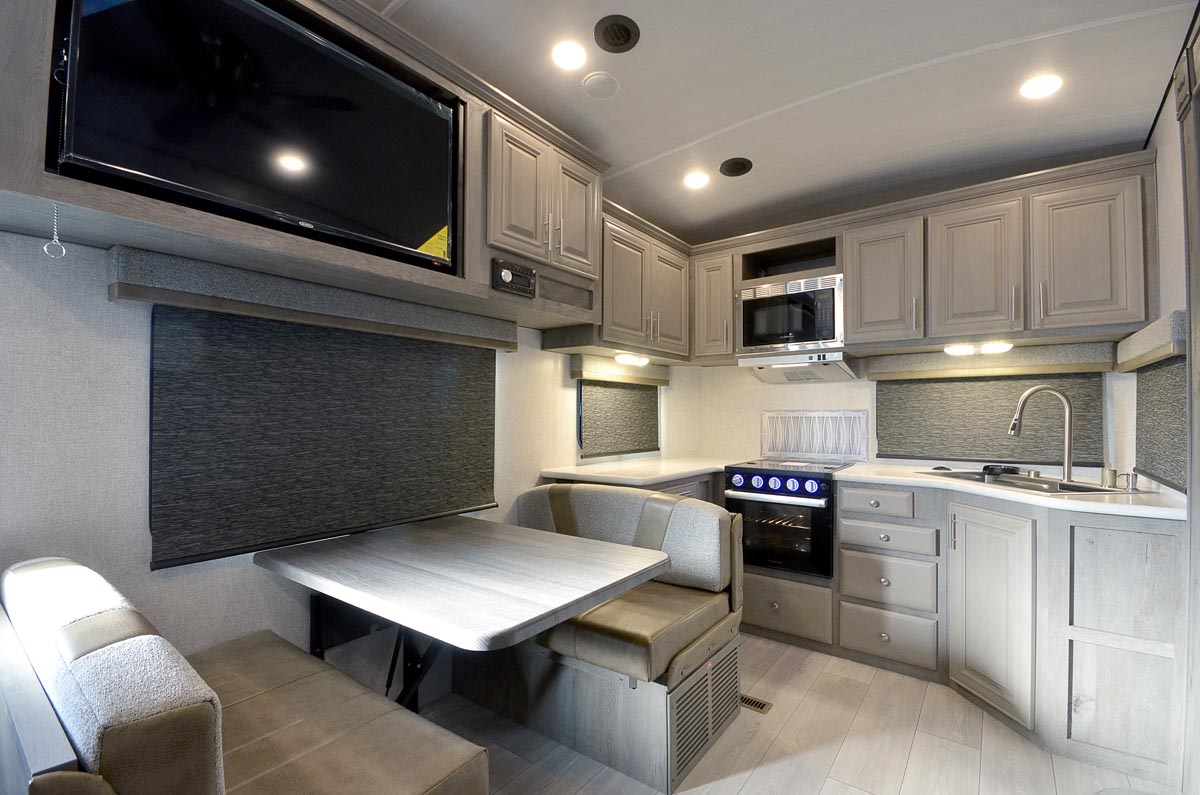

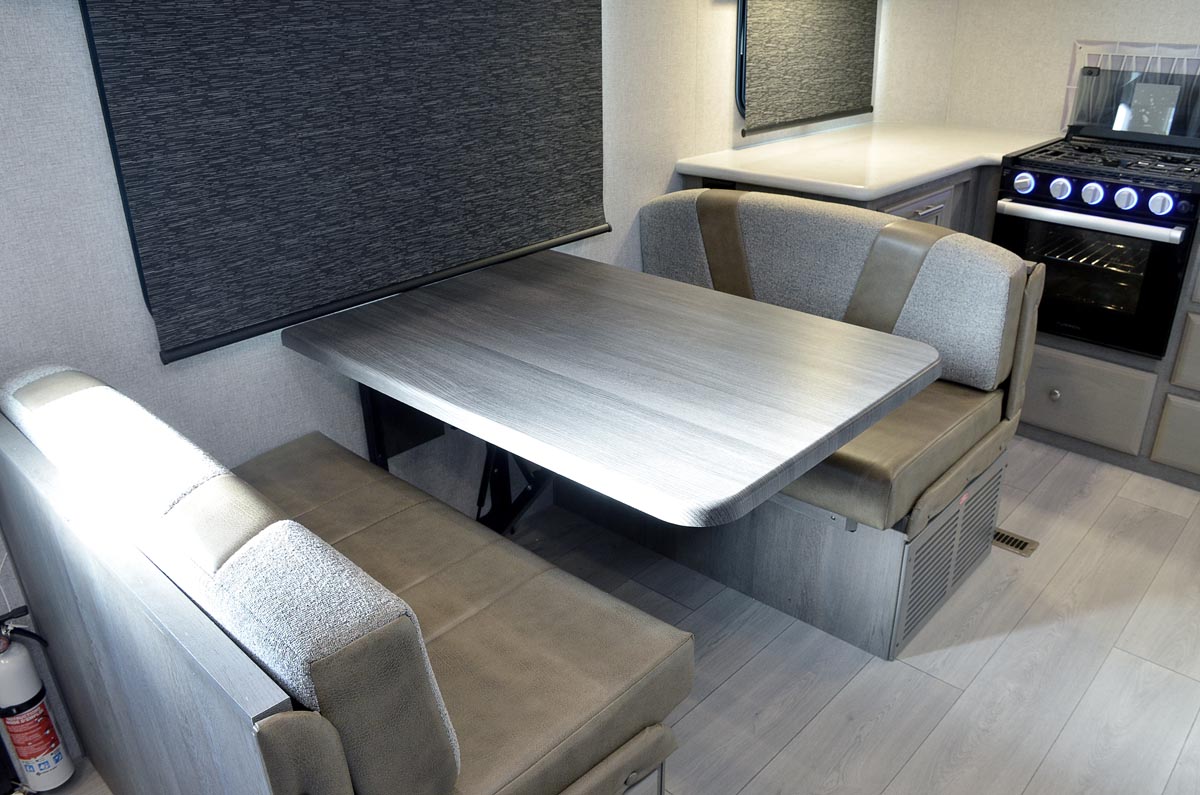

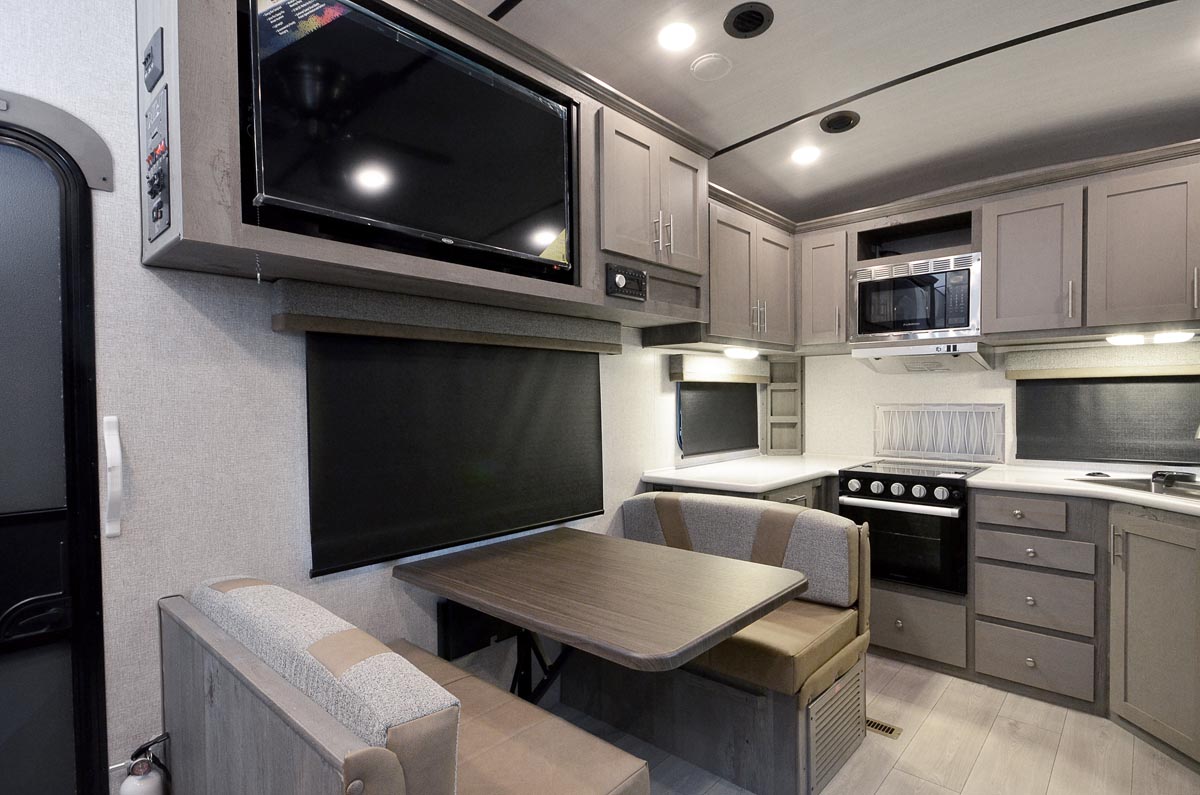

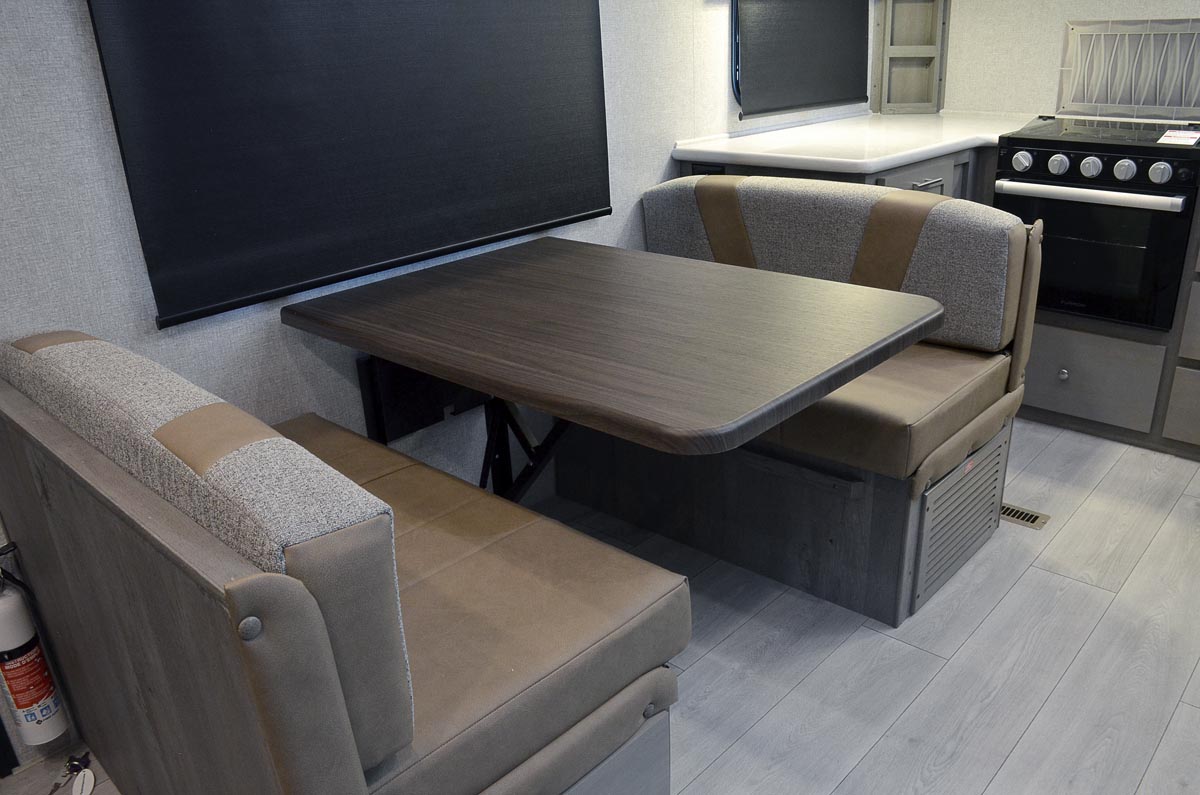

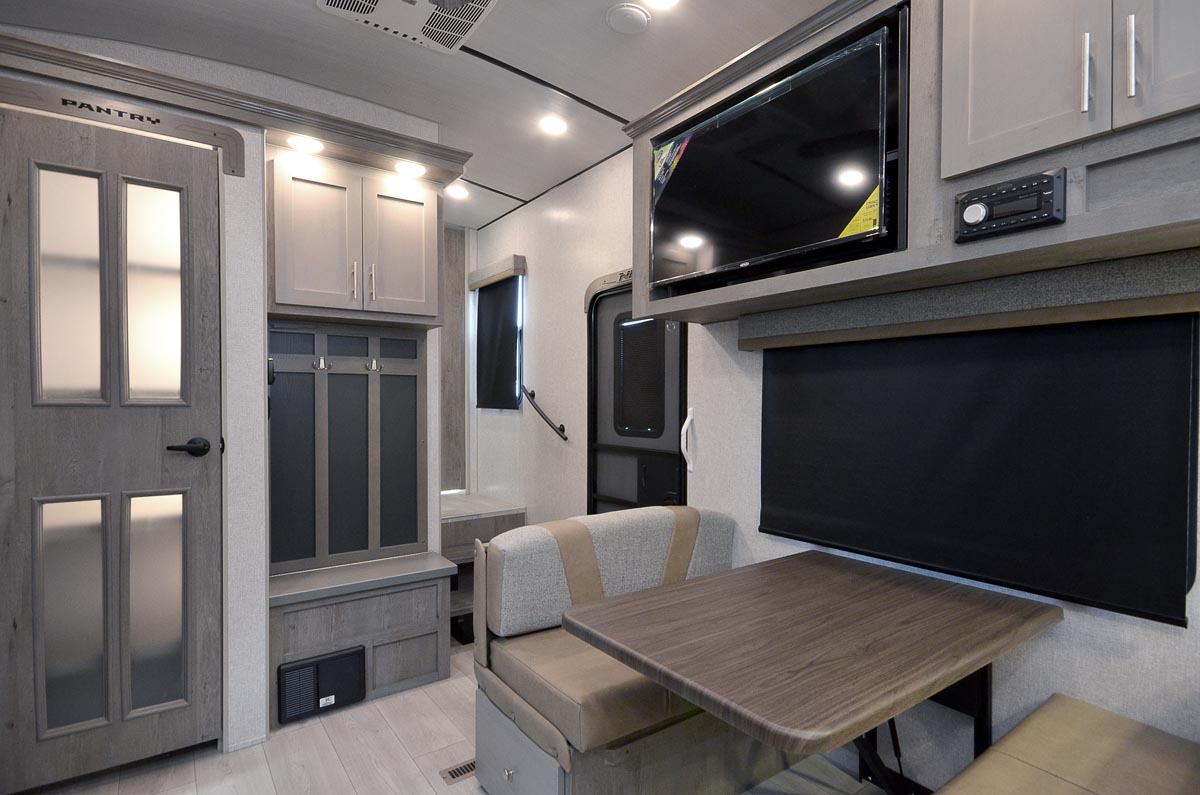

Booth Dinette

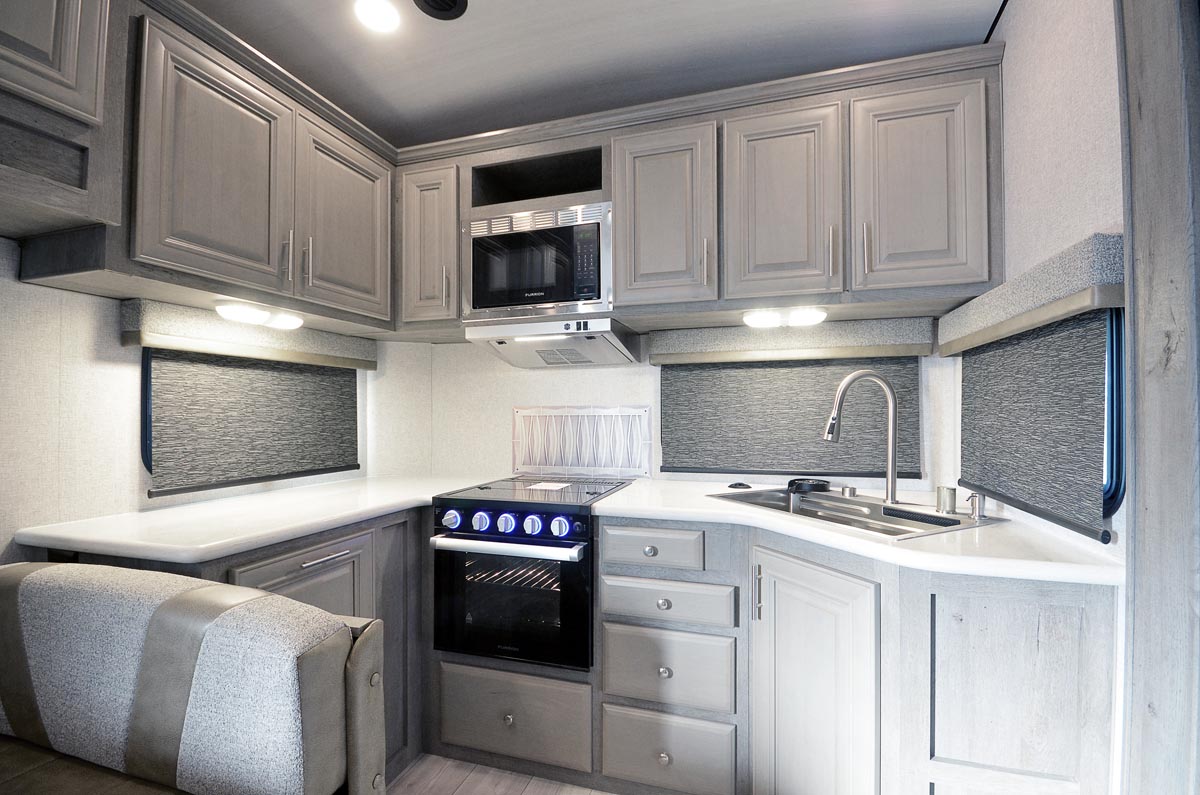

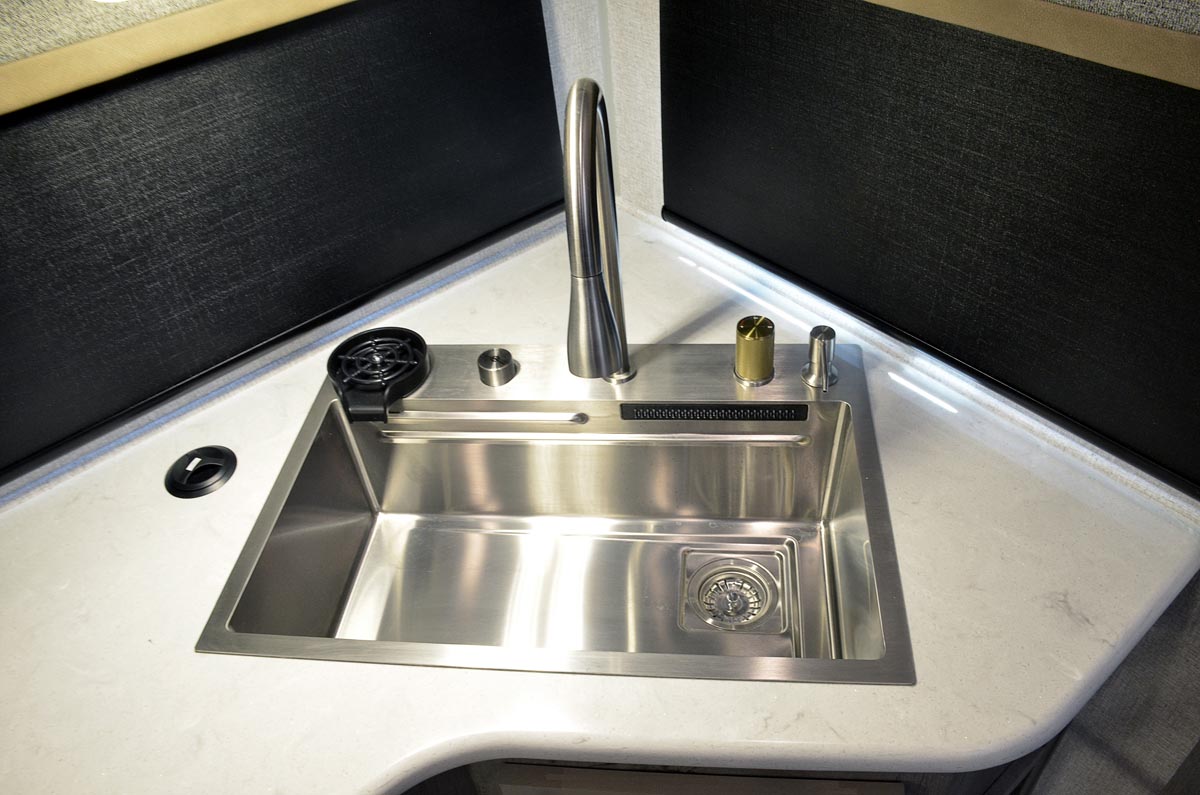

Solid Surface Kitchen Countertops
Custom One Piece Formed Countertops & Dinette Table

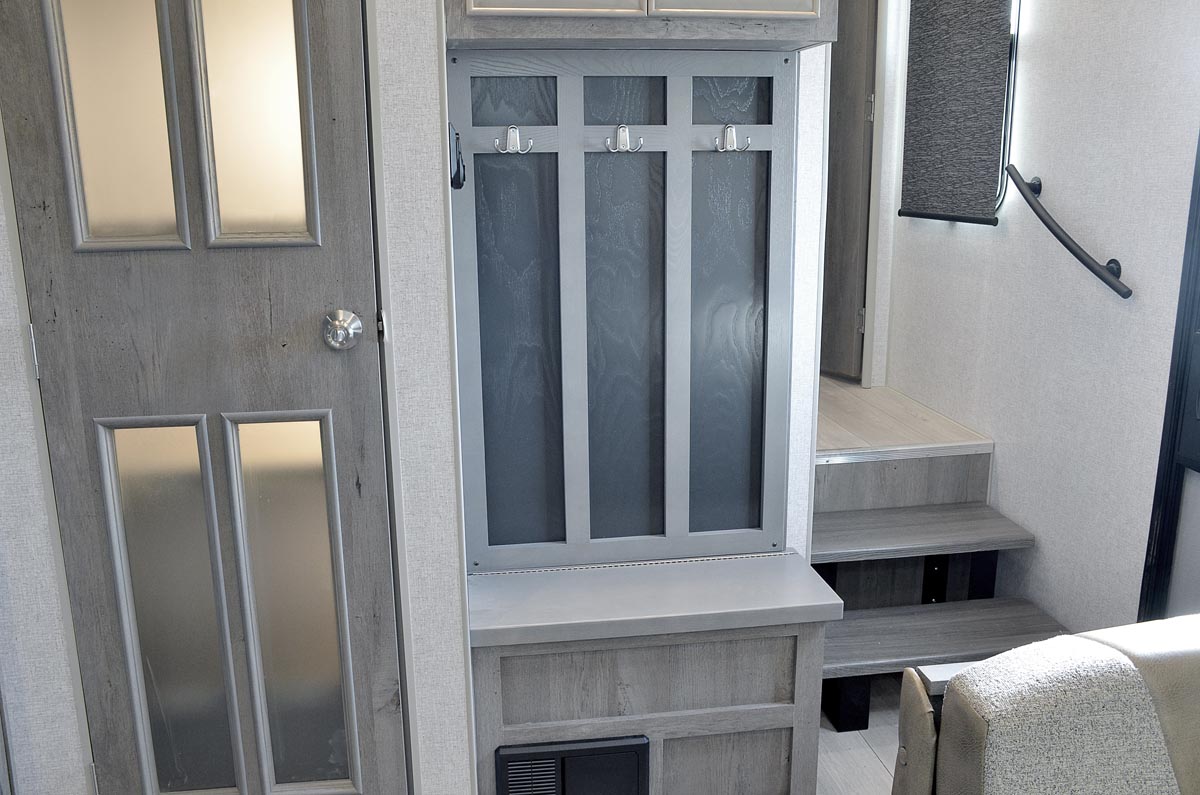

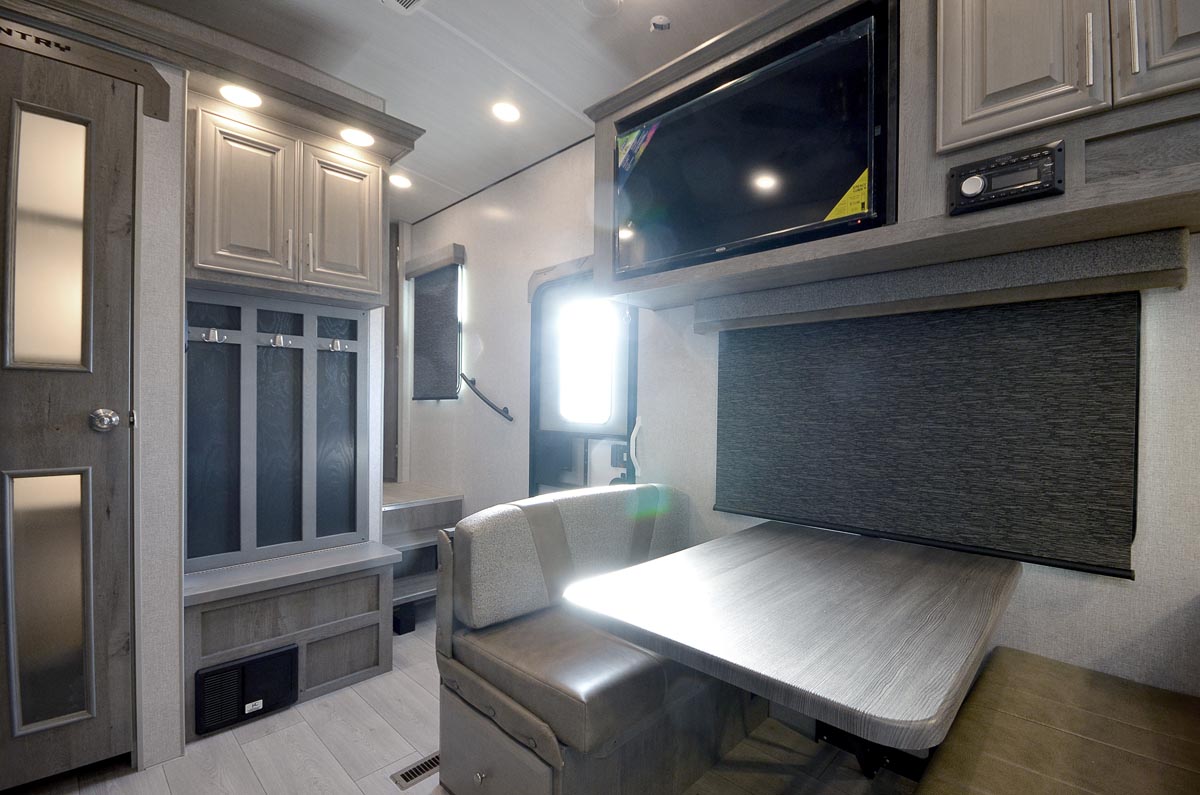

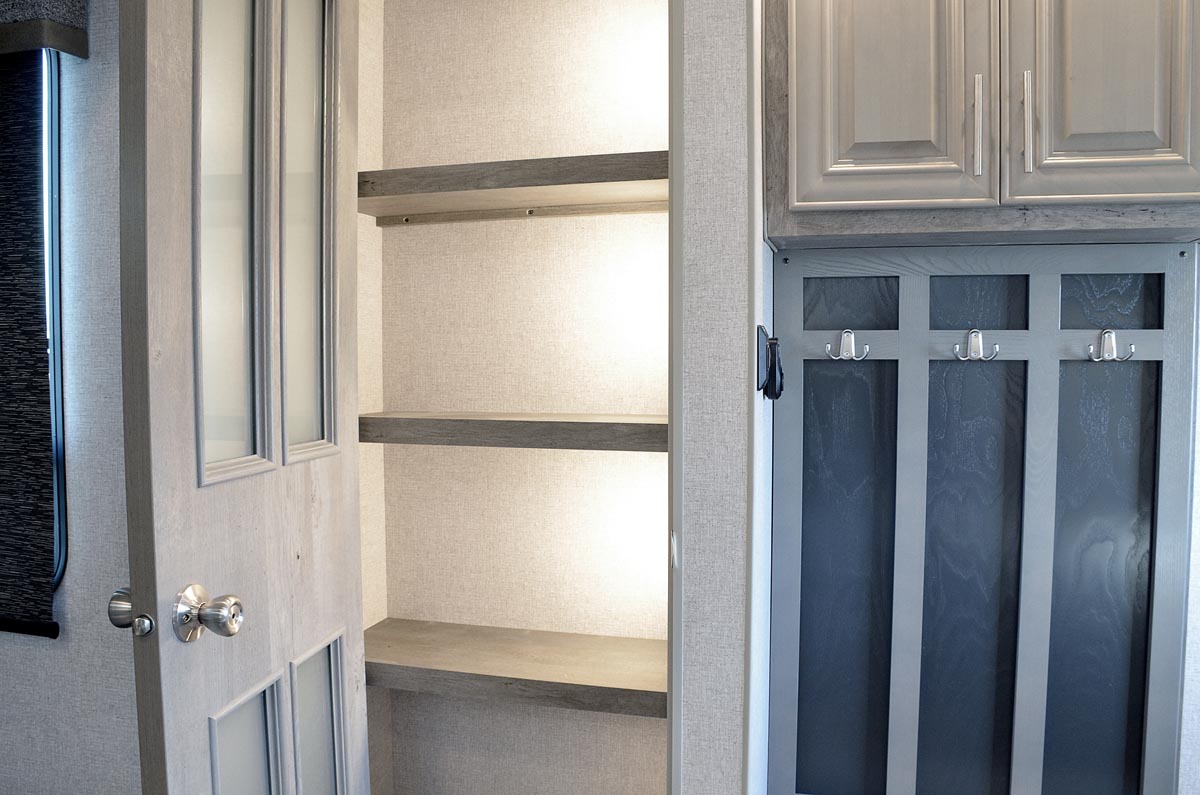

Mudroom Bench Entryway

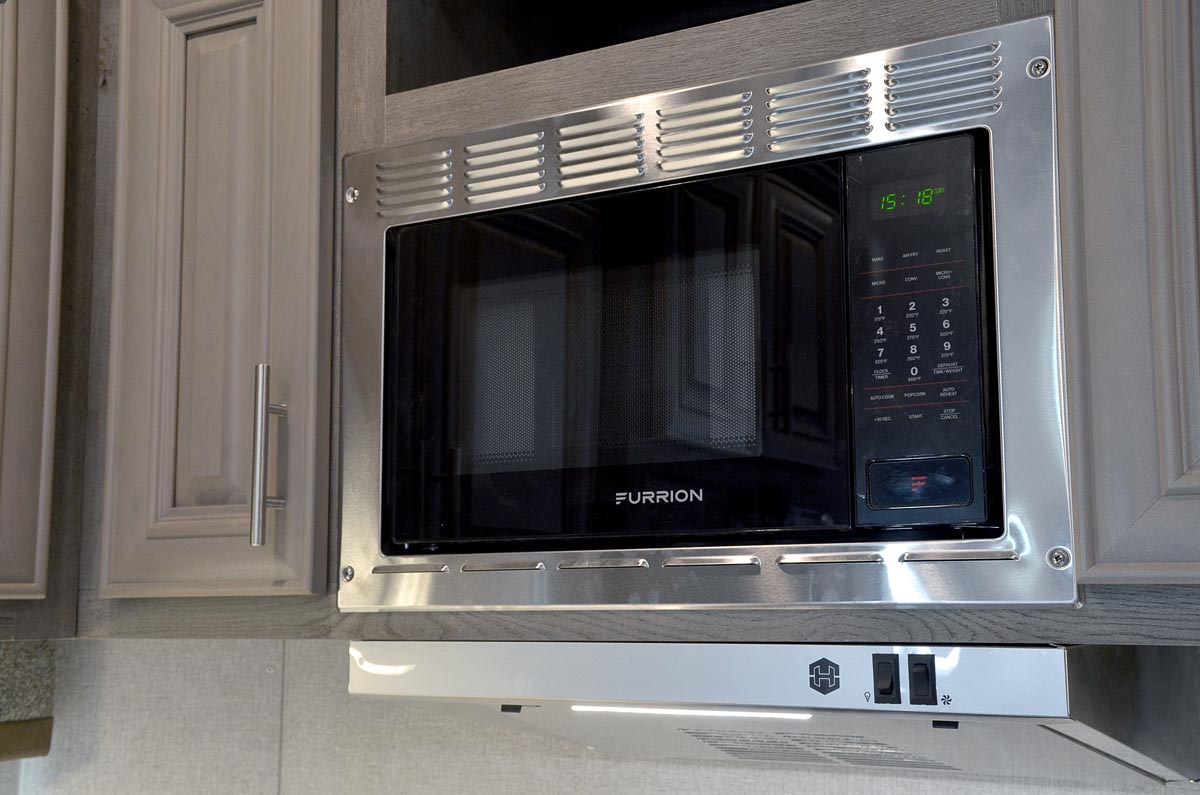

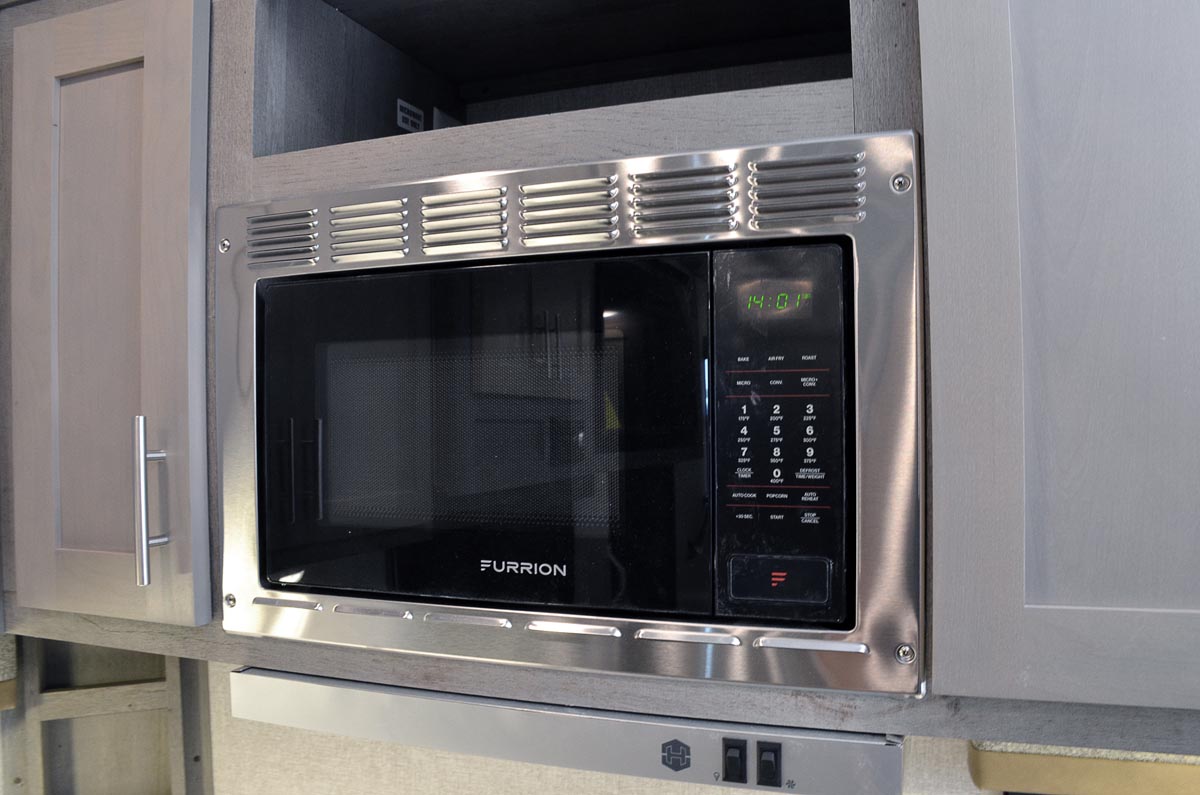

Residential-style Microwave w/Air Fryer

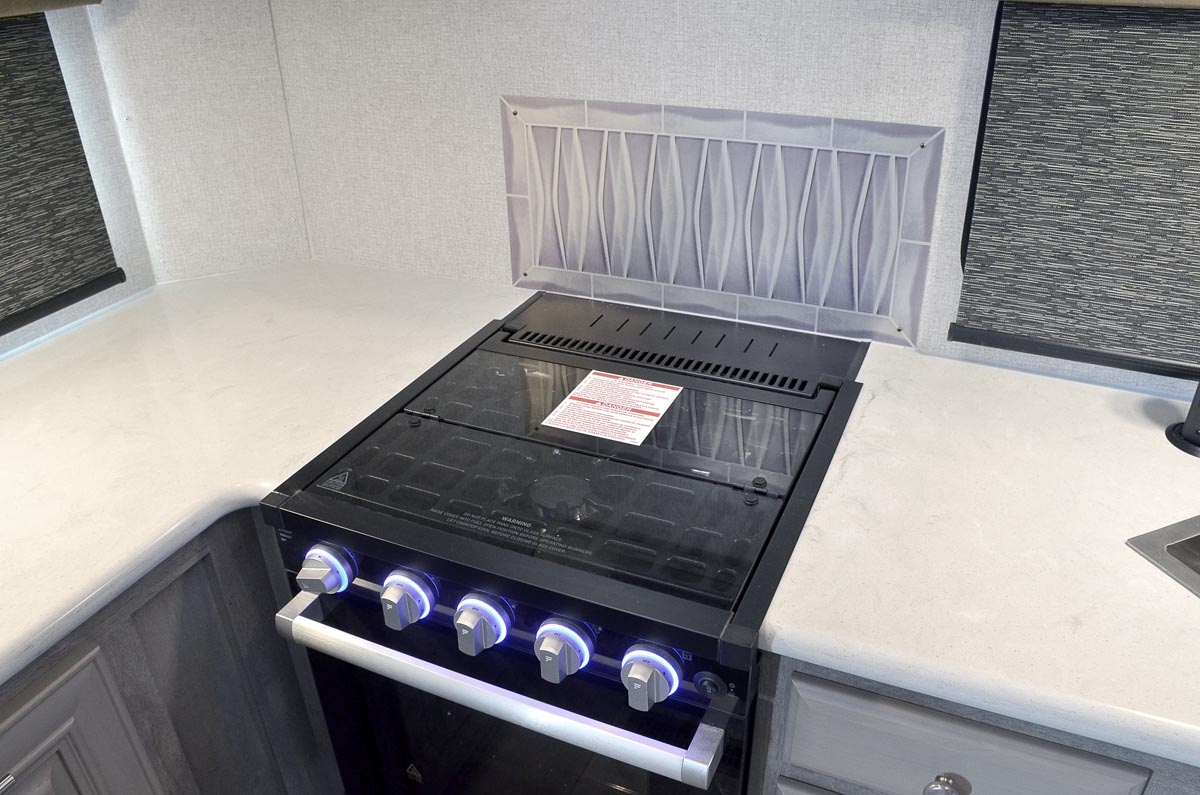

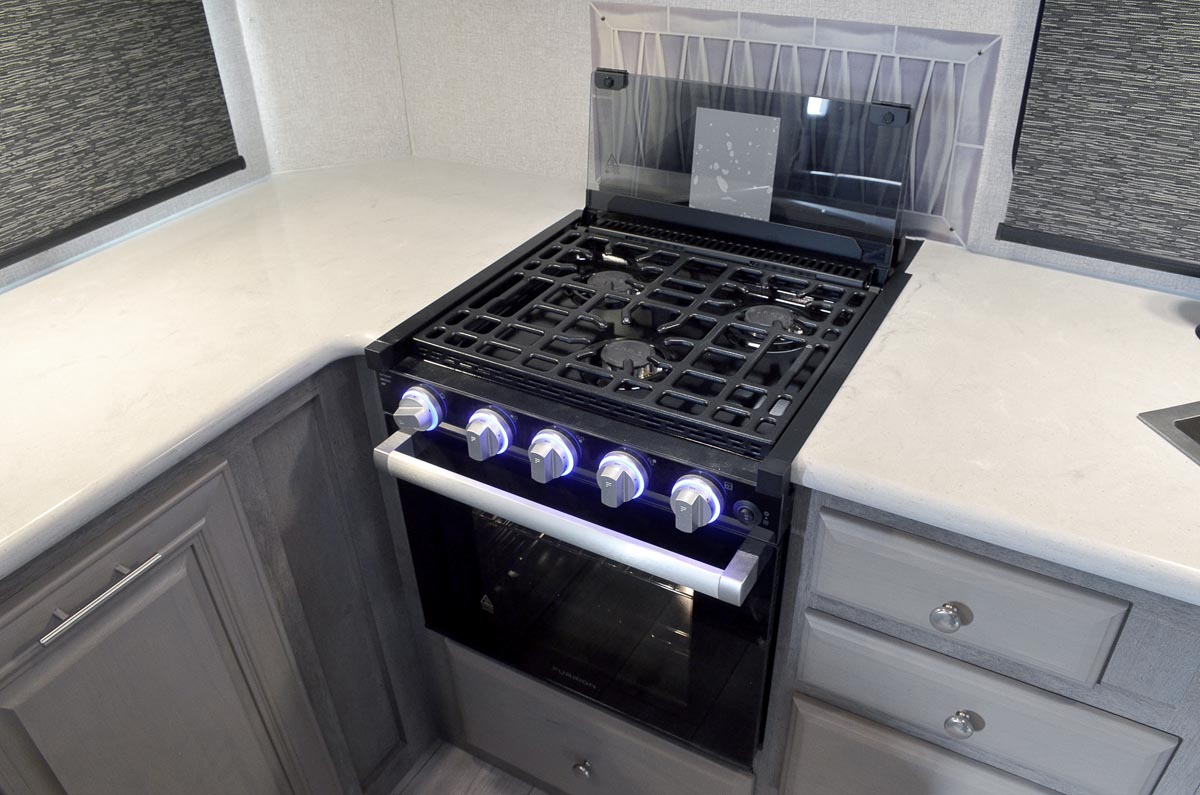

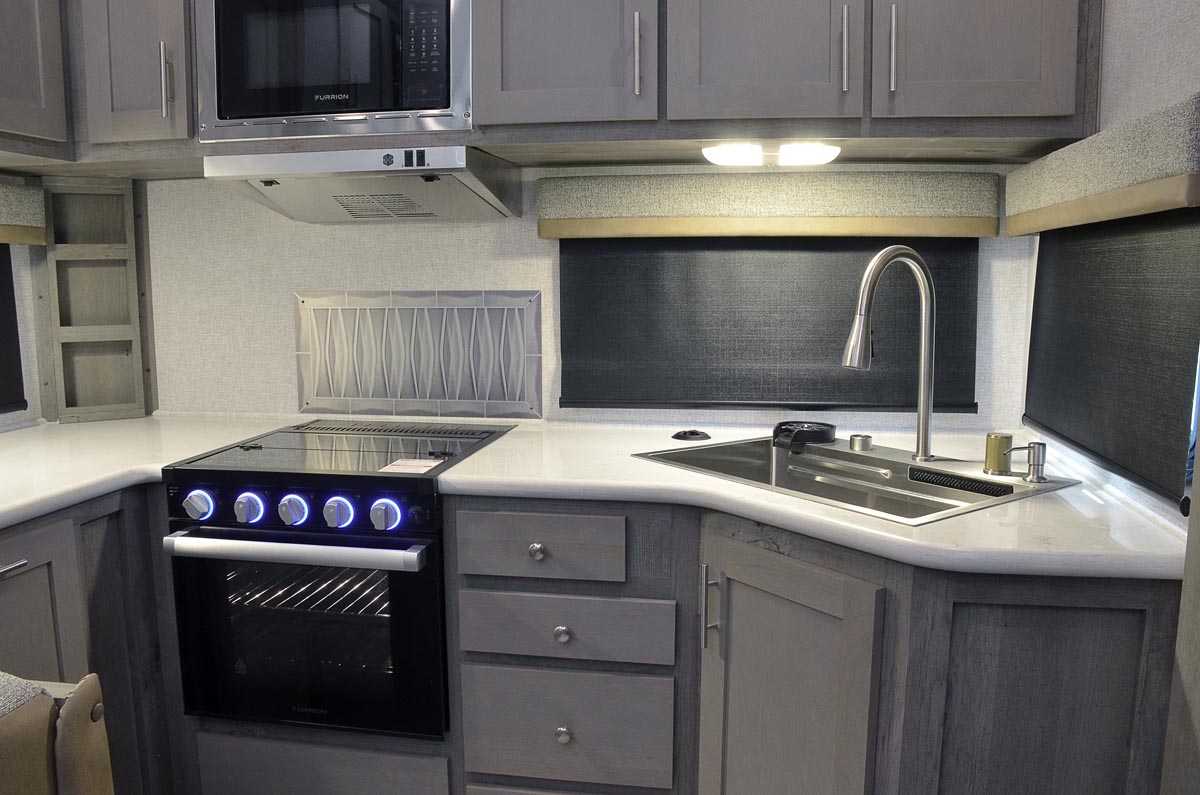

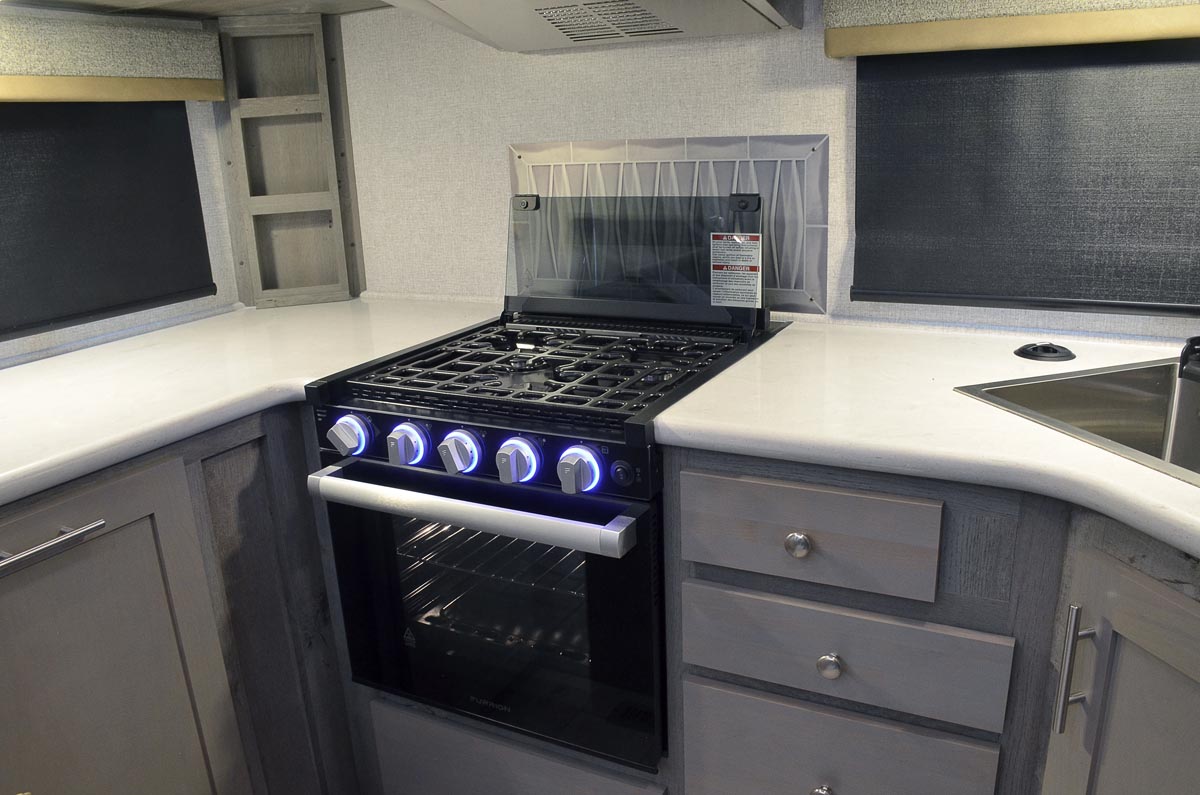

High Output 3-Burner Range & Cover
Ceiling Fan
10 Cubic Foot 12 Volt Refrigerator
Porcelain, Foot-Pedal Toilet / Bath Skylight
Premium Fan Vent – Bathroom (Exhaust Only)

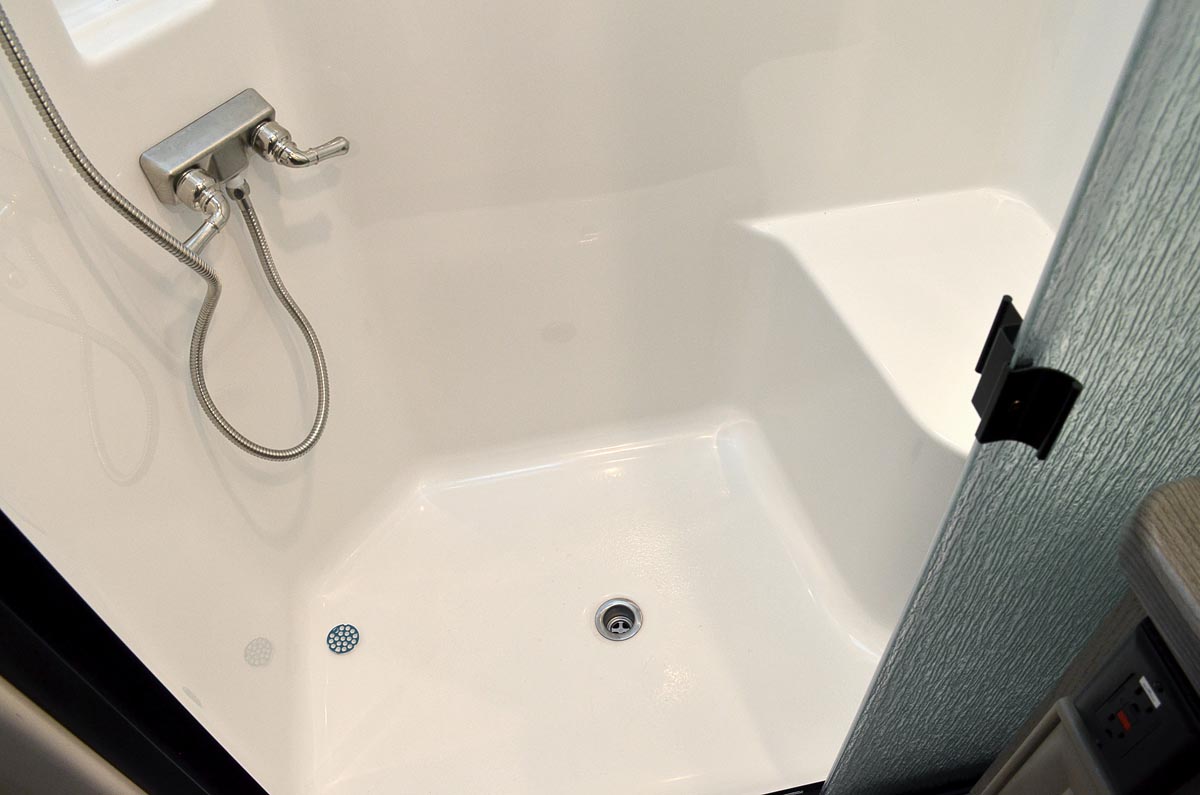

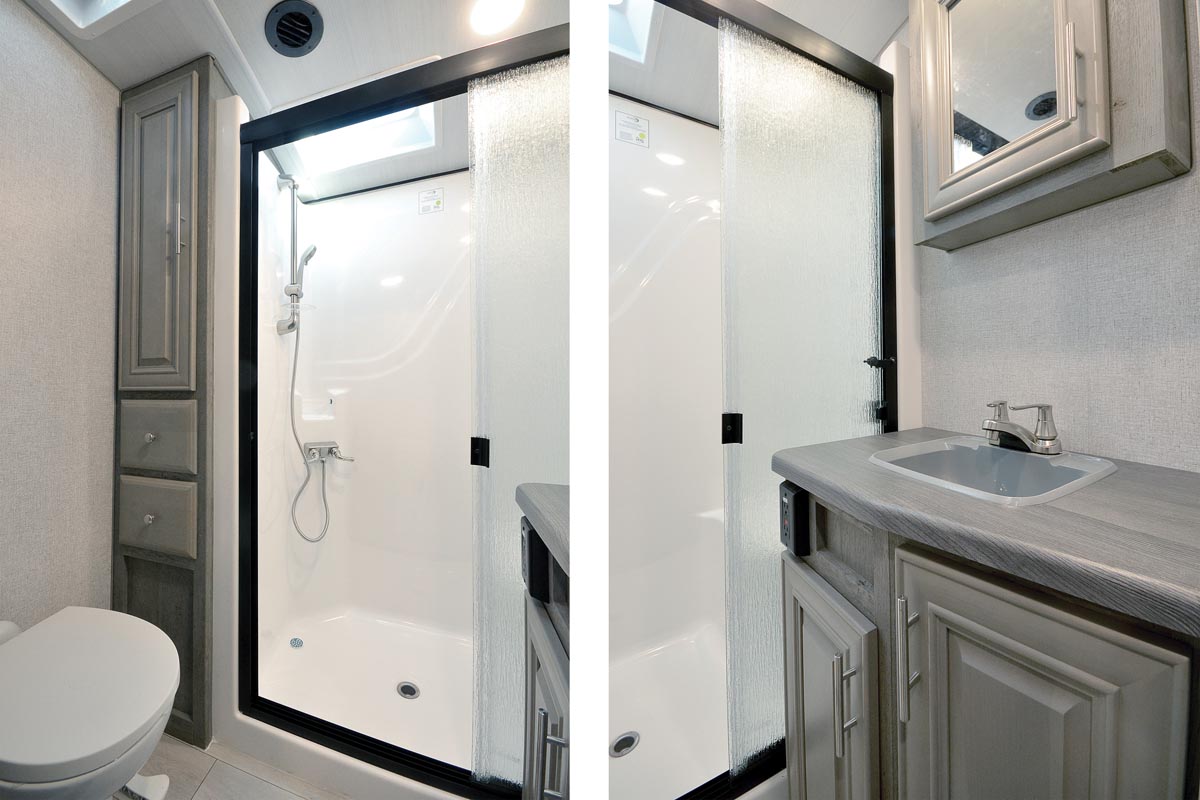

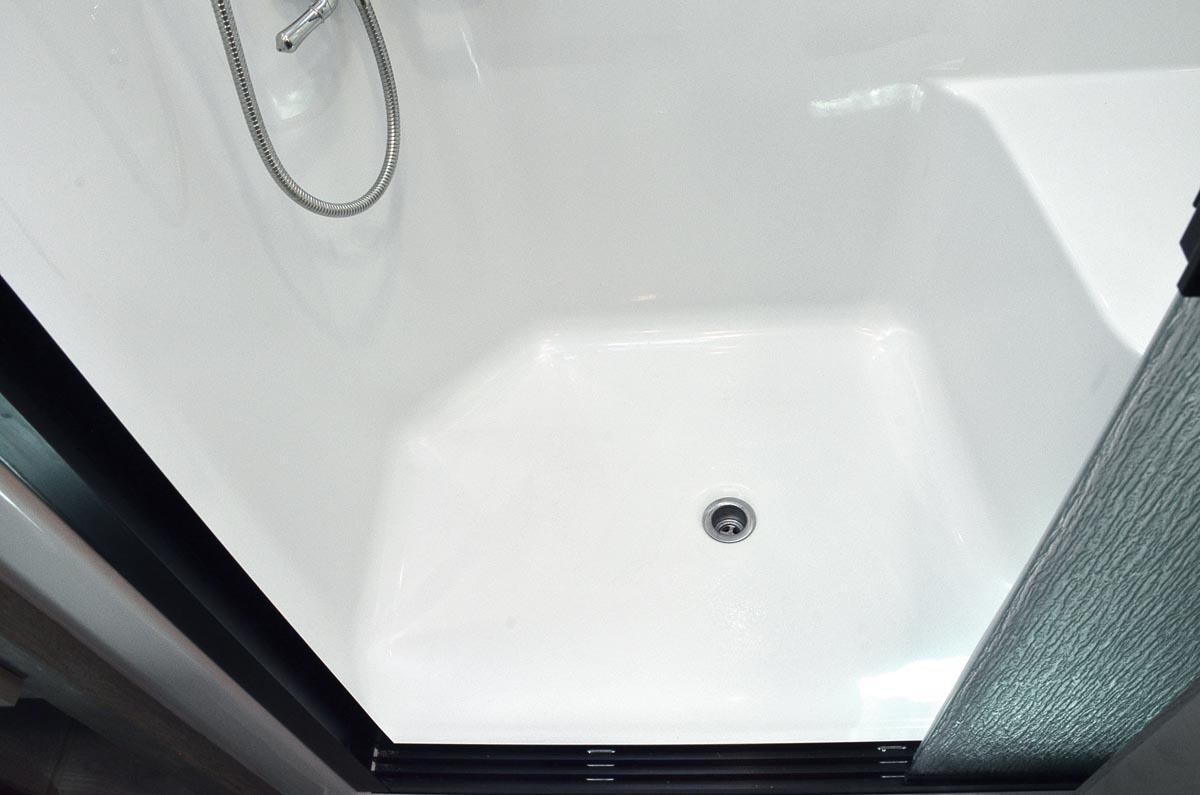

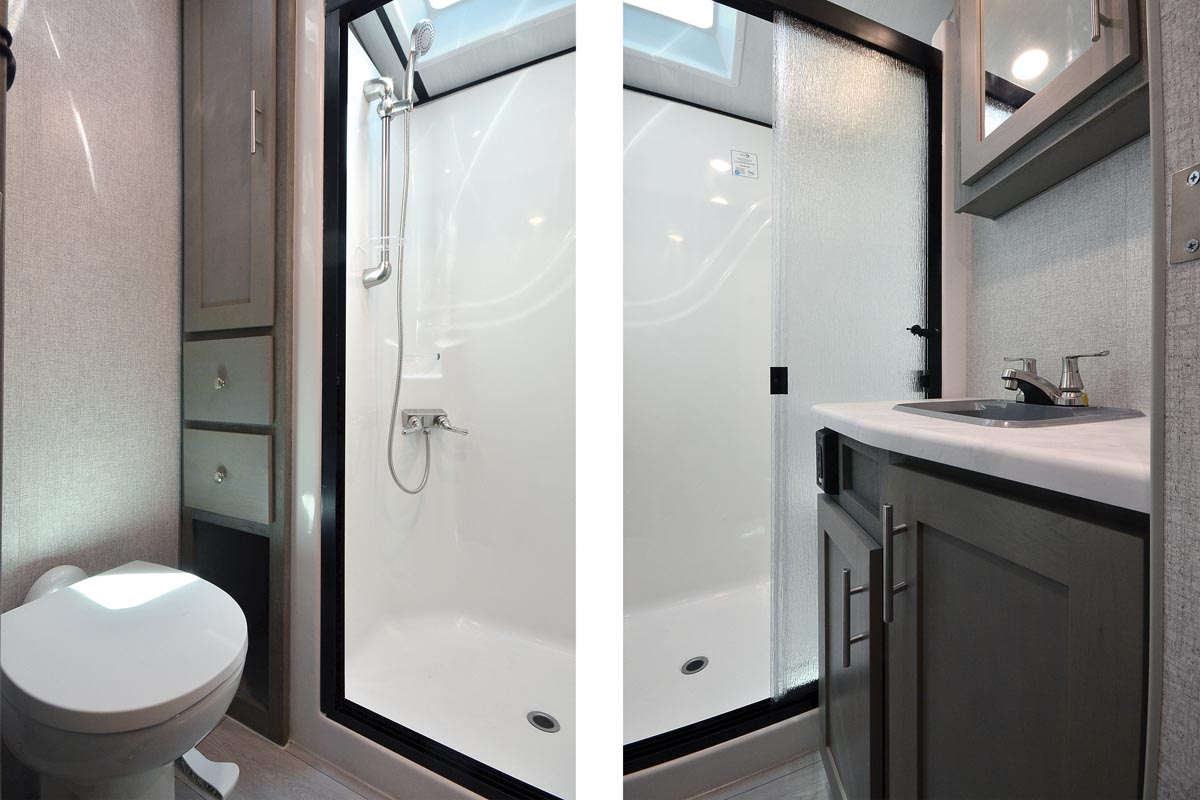

Fiberglass Shower / Glass Enclosure

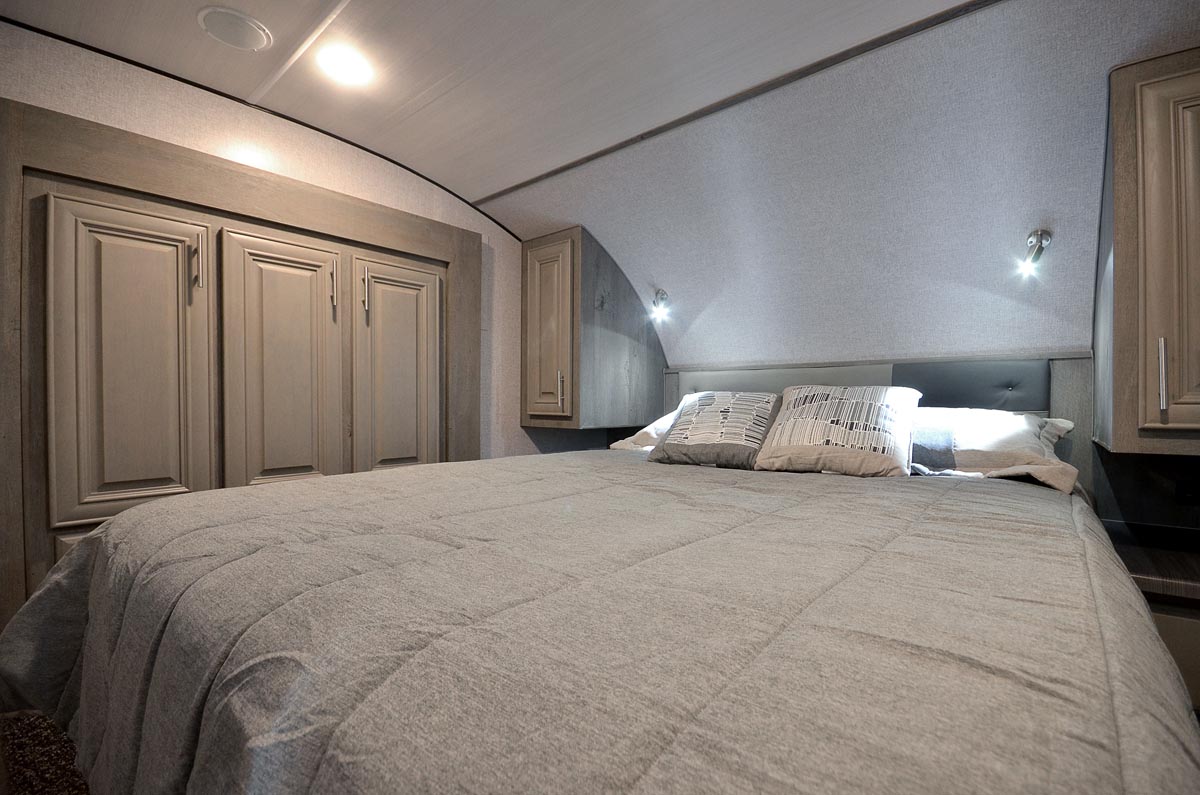

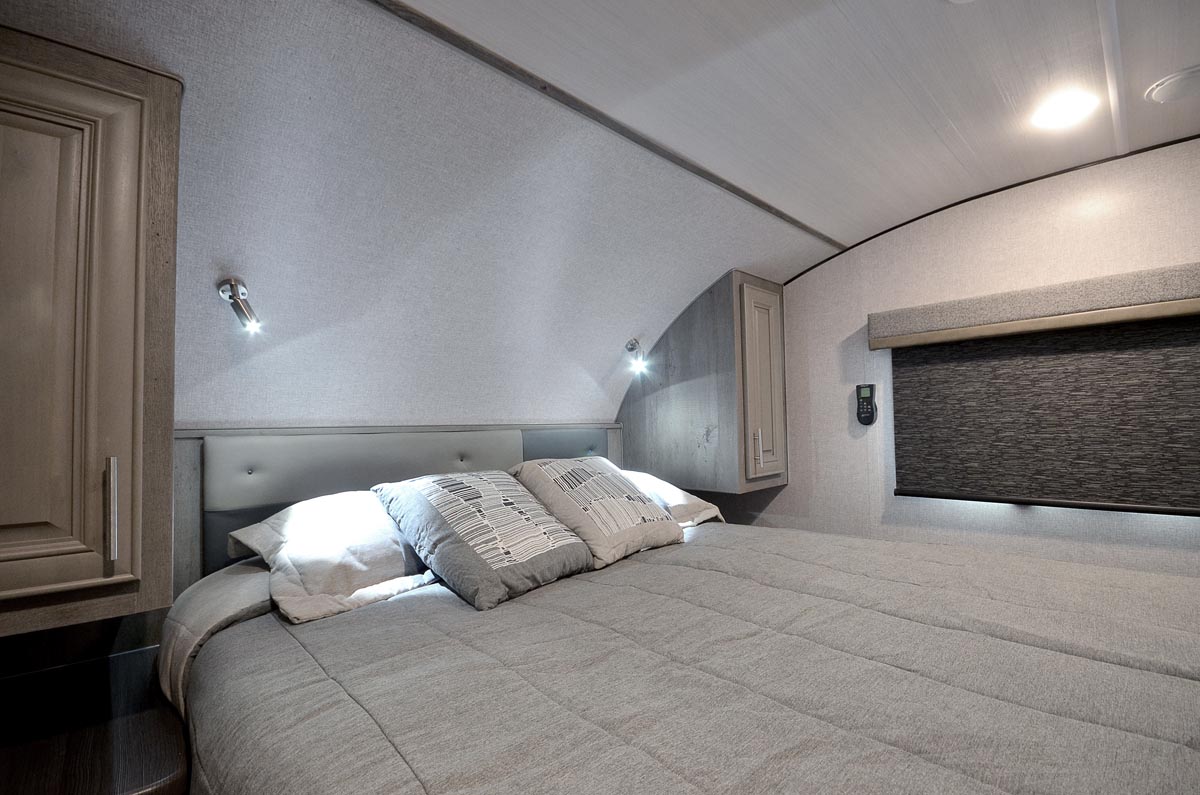

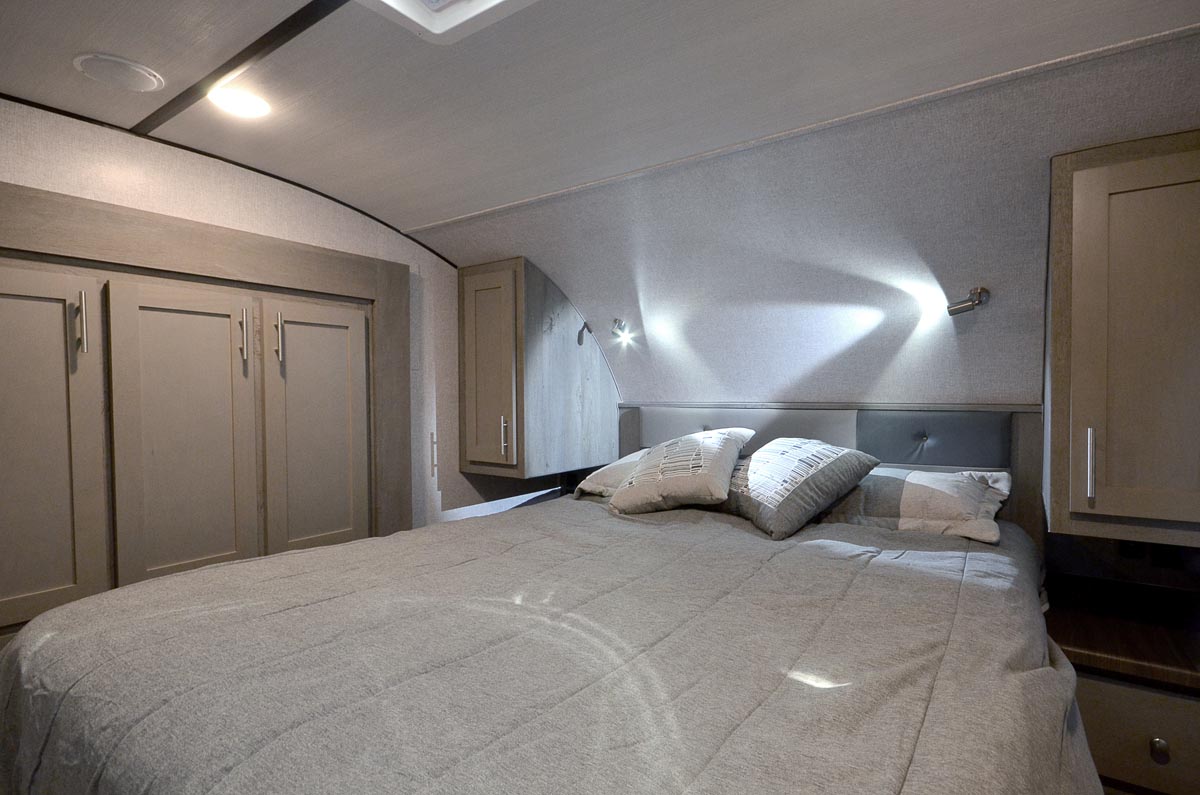

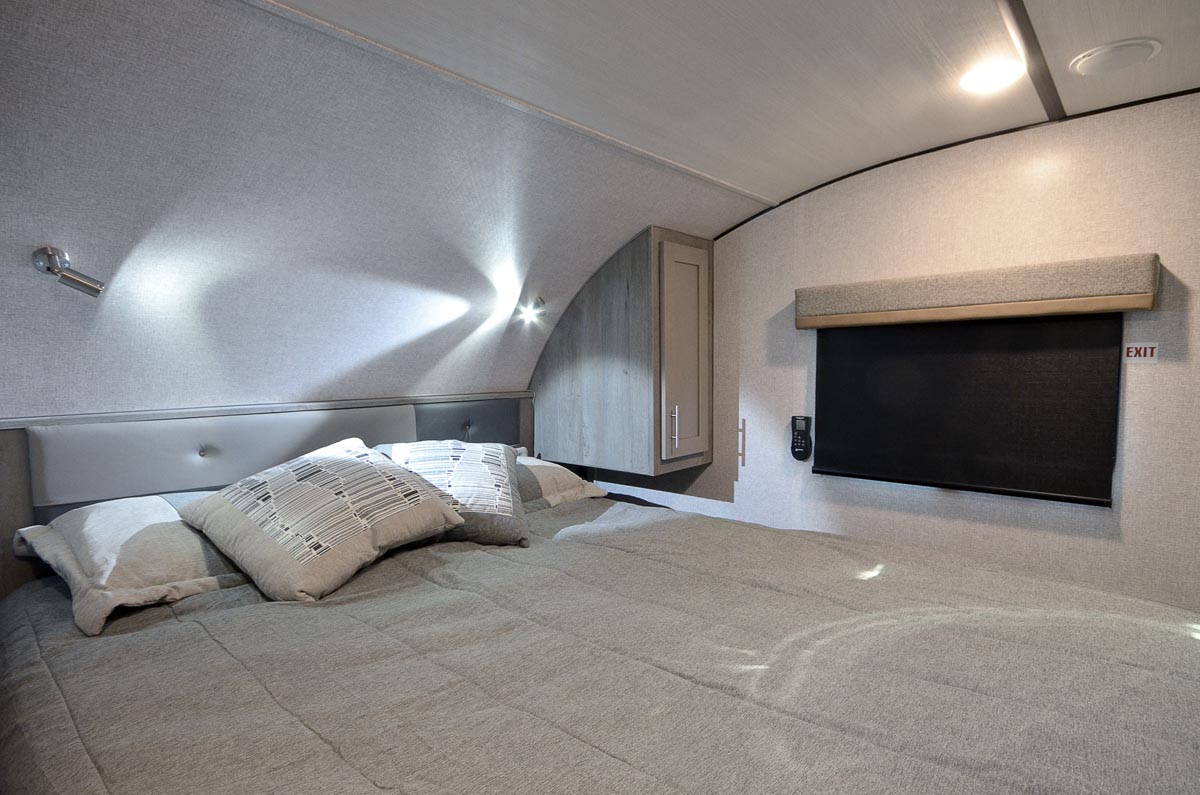

NW TruRest Queen Mattress w/ Bedspread

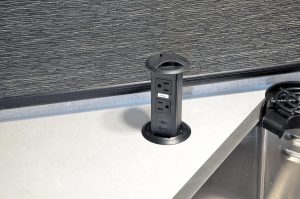

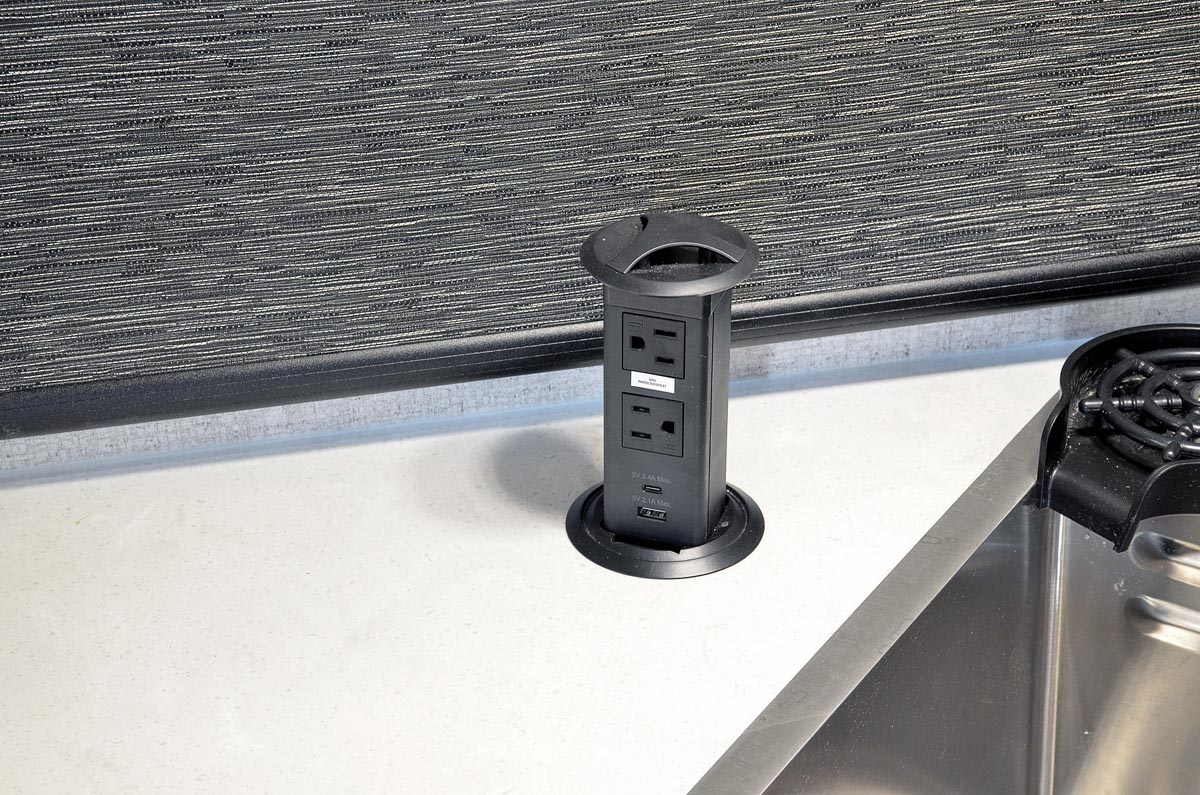

USB Charging Ports & 110 Outlets on Both Sides of Bed
Bedroom Carpet w/ Pad
Options
Surround-Soundbar
Slide Out Topper
Ward Slide Topper
Weatherguard Main Awning
CSA (Canadian Dealers Only)
24″ 12v LED TV Bedroom
15K Low Pro Air Conditioner w/Ducting
15K Air Conditioner w/ Ducting
2″ Receiver Hitch
Holding Tank Heat Pads (All Tanks)
3.6 Onan LP Generator
SolX 6 + 200 Watts of Solar
SolX 8 + 400 Watts of Solar
SolX 10 + 600 Watts of Solar
4 Point Leveling System
(Del Pwr Dual-Mtr Sliding Stab Jacks, Rear)
2,000 Watt Inverter W/Trans Switch
3,000 Watt Inverter w/400AH Lithium Battery
FoxForward Multi-plex System
100AH Lithium Battery
RV BBQ
Rear View Camera
Gateway Router
