Specifications:
Dry Axle Weight (approx. Lbs.): 6564
Dry Hitch Weight (approx. Lbs.): 796
Net Carrying Capacity: 3340
Gross Dry Weight (approx. Lbs.): 7360
Gross Vehicle Weight (GVWR)-Lbs: 10700
Exterior Length (approx. w / hitch): 32’4″
Exterior Height (approx.): 11’6″ incl. AC
Exterior Width (approx.): 8′
Tire Size: ST235/80R16
Load Range: E
Fresh Water Capacity (w/water heater, approx. gal.): 50
Gray Water Tank (approx. gallons): 40
Black Water Tank (approx. gallons): 35
LPG Capacity (approx. lbs): 60
Sleeping Capacity: 10
CSA – Canadian Dealers Only: YES
Auto Ignition Furnace (1,000 BTUs): 25
Features / Options
Standard Features
Northwood Built Ironhorse Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
Corona Treated Fiberglass
Laminated, Multi-Layered Substrate Walls
High Density Block Foam Insulation
Cathedral Arched Ceiling
E-Z Lube Axles
16″ Aluminum Wheels / Tires & White Mod Spare
Shocks On All Four Wheels
12-Volt Power Tongue Jack / Manual Stabilizer Jacks
Easy Access LP Cover / Dinette-Sofa Slide
4″ Sewer Hose Carrier Bumper
All-Conditions/Four Seasons Insulation With R-14 Ceiling
R-15 Reflective Foil Insulation in Roof / Slide
Heated and Enclosed Tanks
Aerodynamic Front Fiberglass Cap w/ Di Plate Gravel Guard
Thermal Pane Windows / Rear View Camera Ready
Exterior HD Ladder / Exterior Marine Grade Speakers
Pass Thru Storage w/Independently Switched LED Light
LPG Quick Connect & Black Water Flush System
Entry Door Friction Hinge
Exterior Shower
10 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTU Air Conditioner w/Condensation-Resistant Ducting

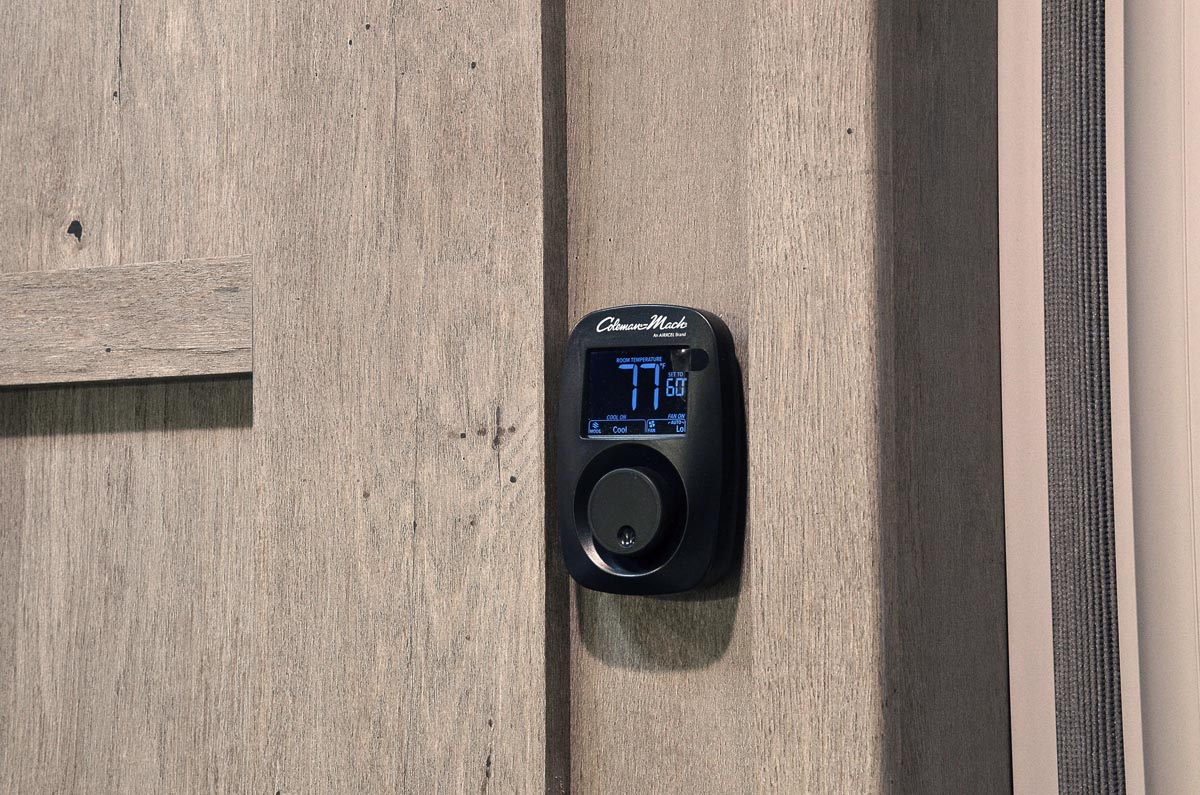

Charge Wizard w/Li Switch / Digital Thermostat
12V LED Awning w/Adjustable Pitch
Omni-Directional TV Antenna/Battery Disconnect
SolX 4 – 400 Watt Solar Package
Generator Ready / Satellite Ready
2″ Rear Receiver Hitch
LED Interior Utility & Decorative Lighting

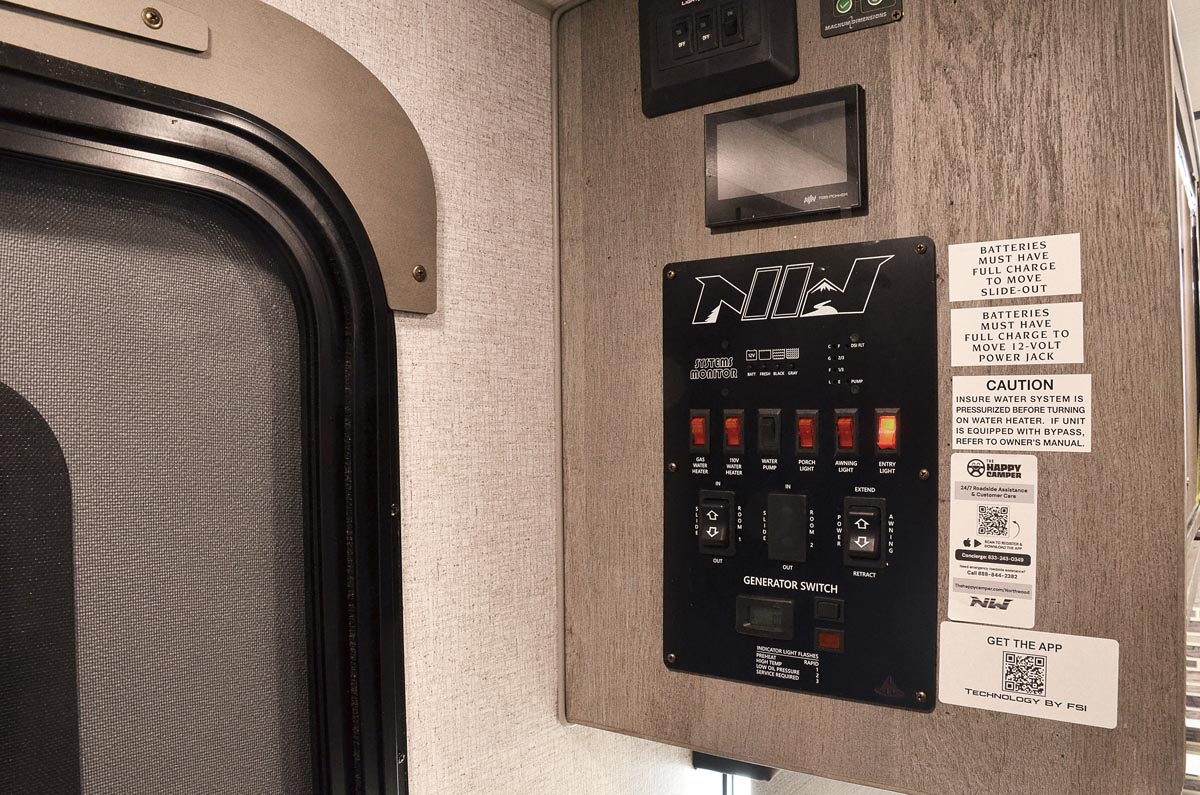

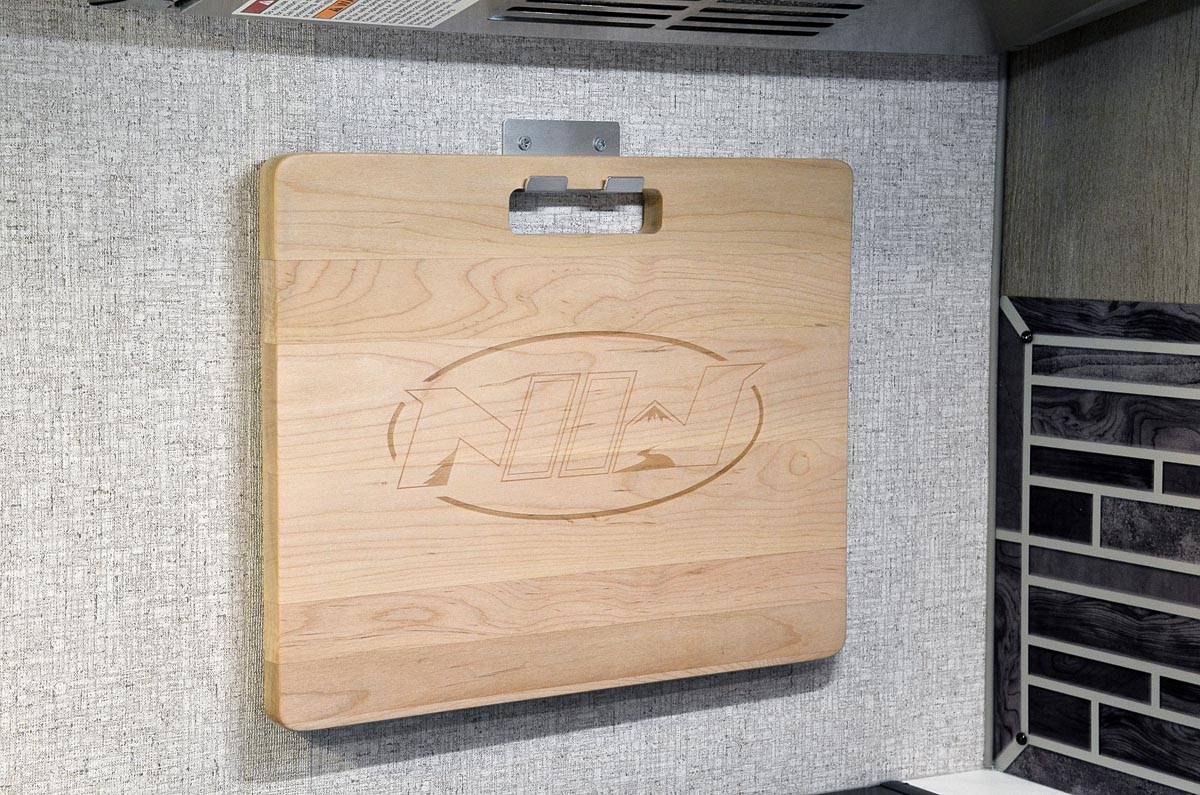

Interior Command Center / NW Logo Cutting Board-Backsplash
Roller Bearing Drawer Glides
Slow Rise Night Shades / 2,000 Watt Inverter W/Trans Switch

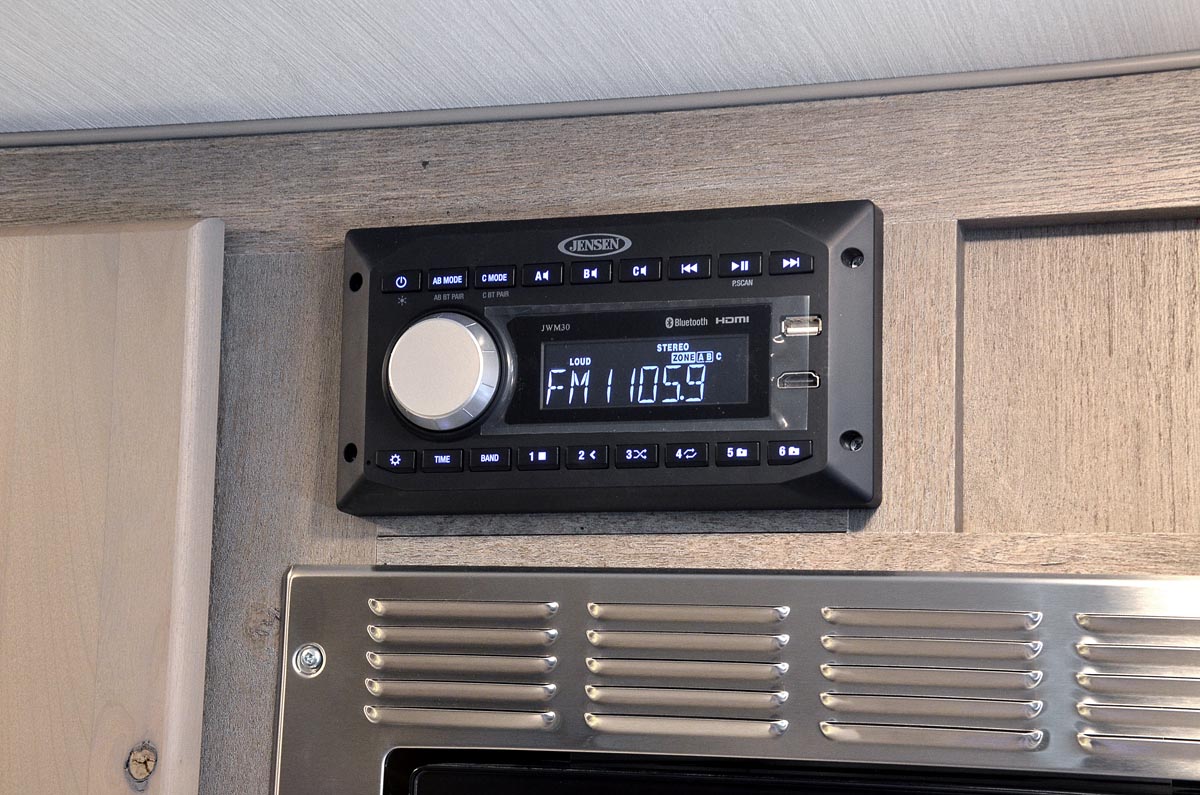

AM/FM Stereo w/Bluetooth
Smoke, LPG & CO Leak Detectors

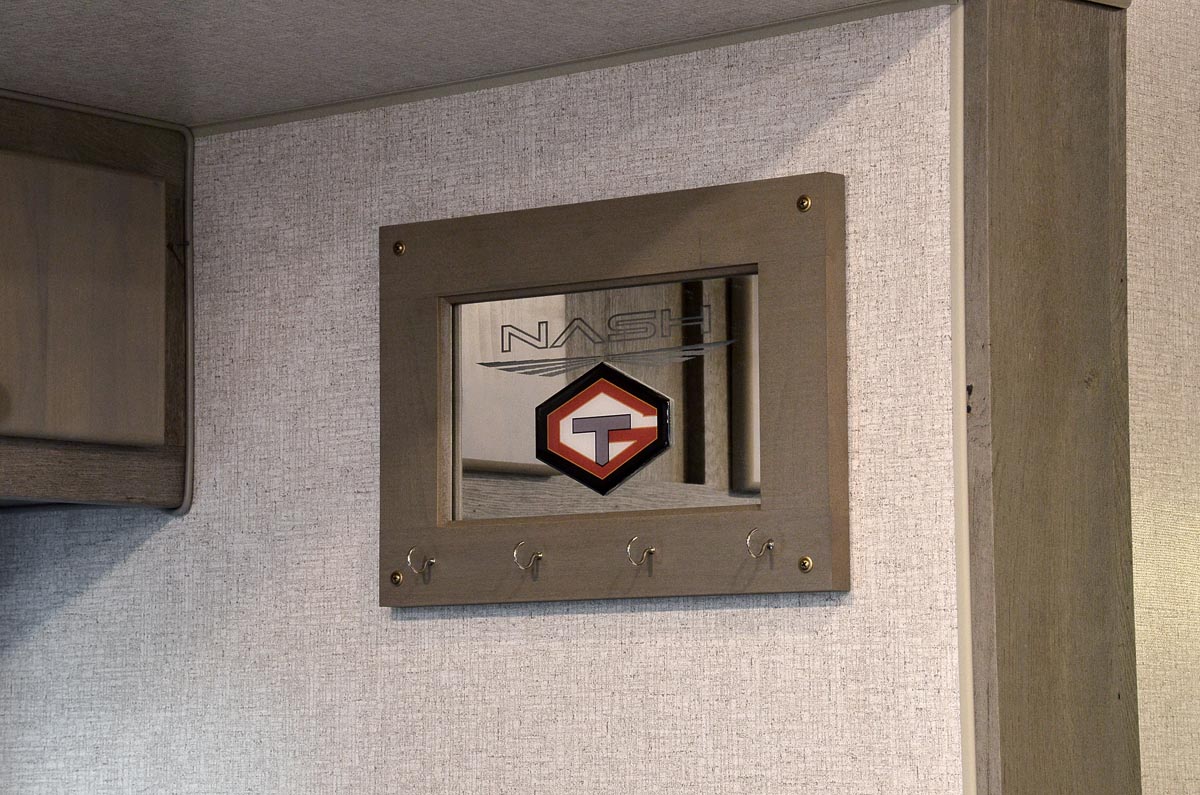

Custom Nash Signature Key Rack
Jackknife Sofa

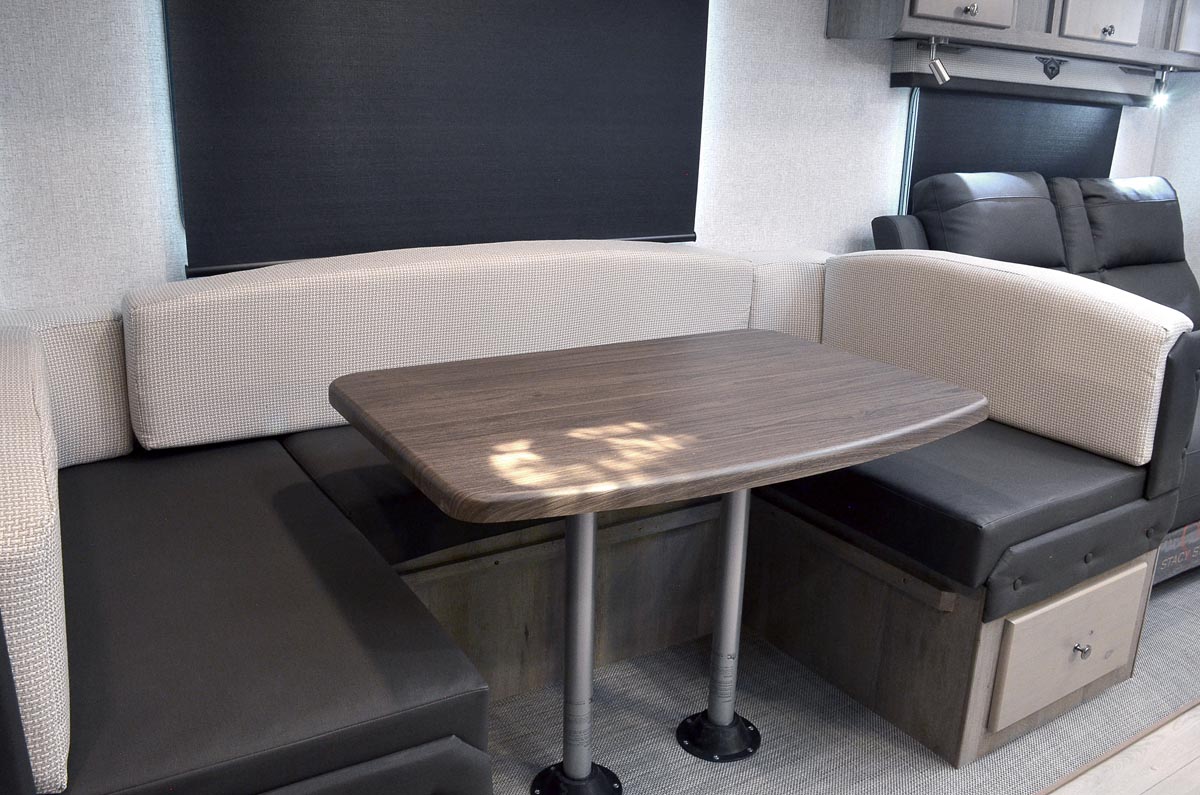

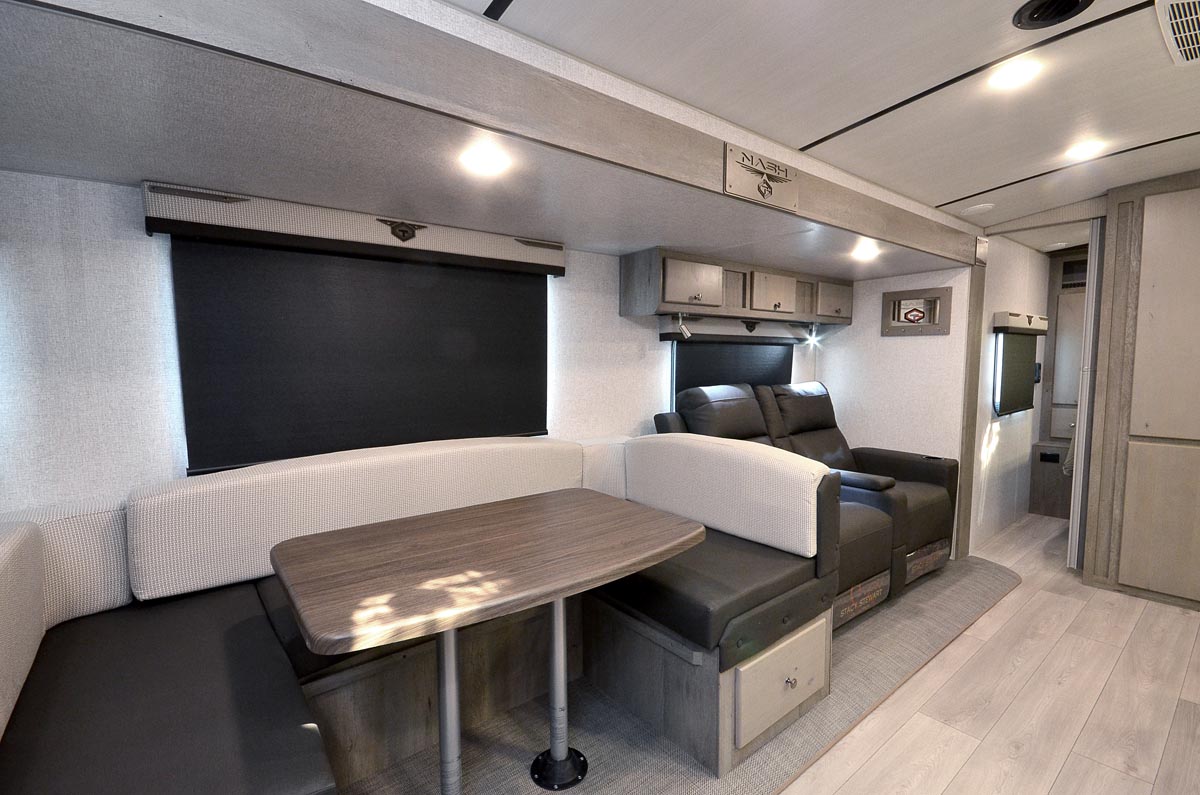

U-shaped Dinette w/Storage Drawers
Custom One Piece Formed Countertops & Dinette Table

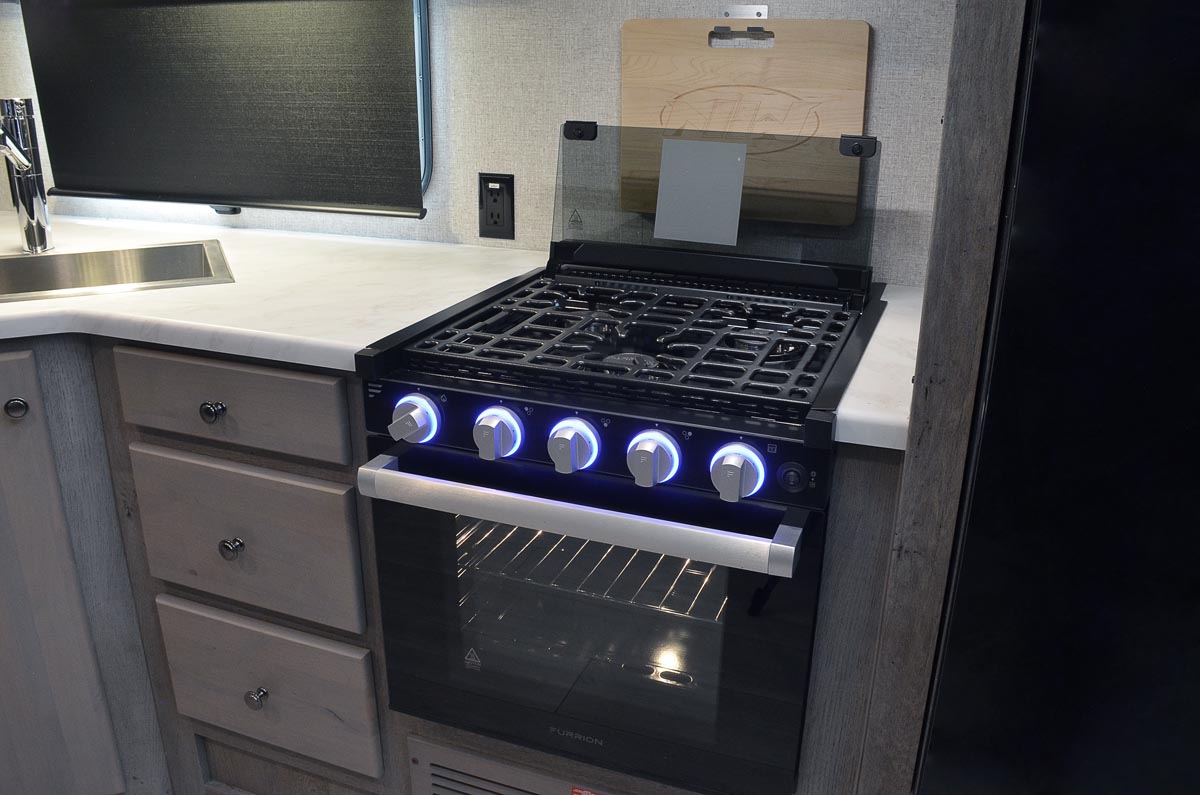

High Output 3-Burner Range & Cover
10 Cubic Foot 12 Volt Refrigerator

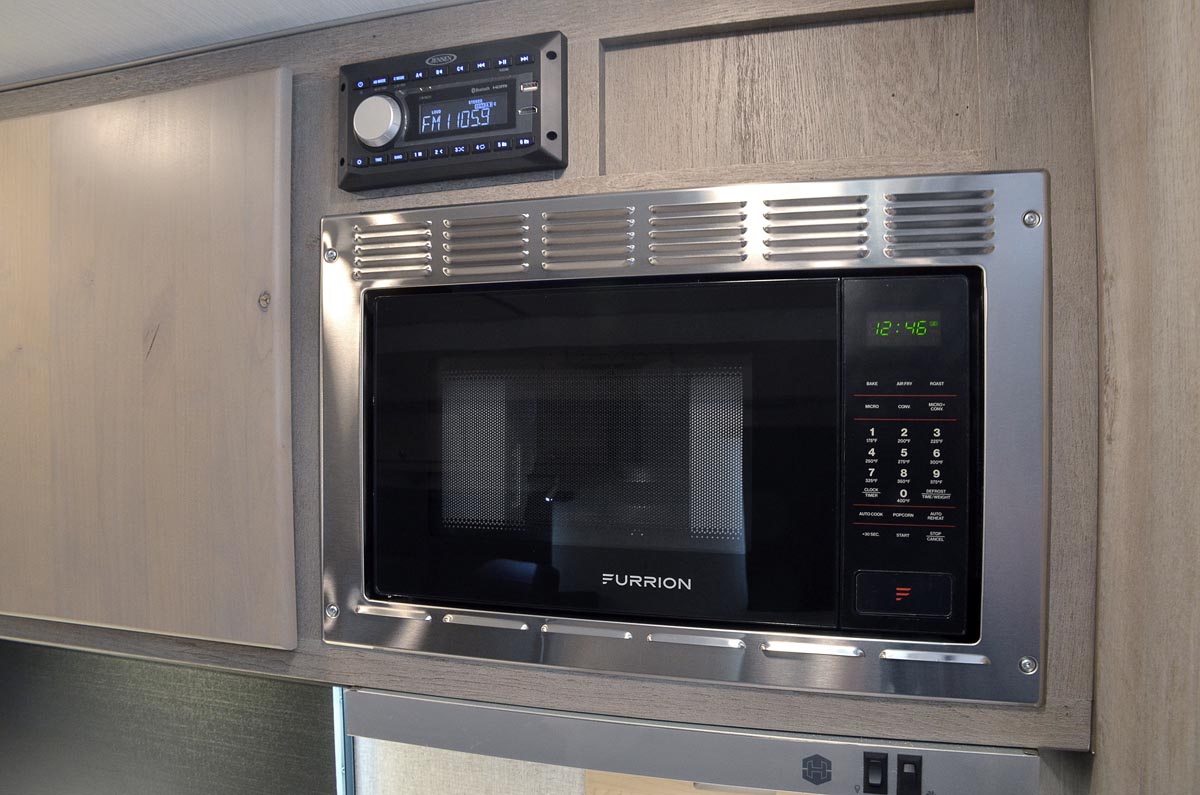

Residential-style Microwave w/Air Fryer

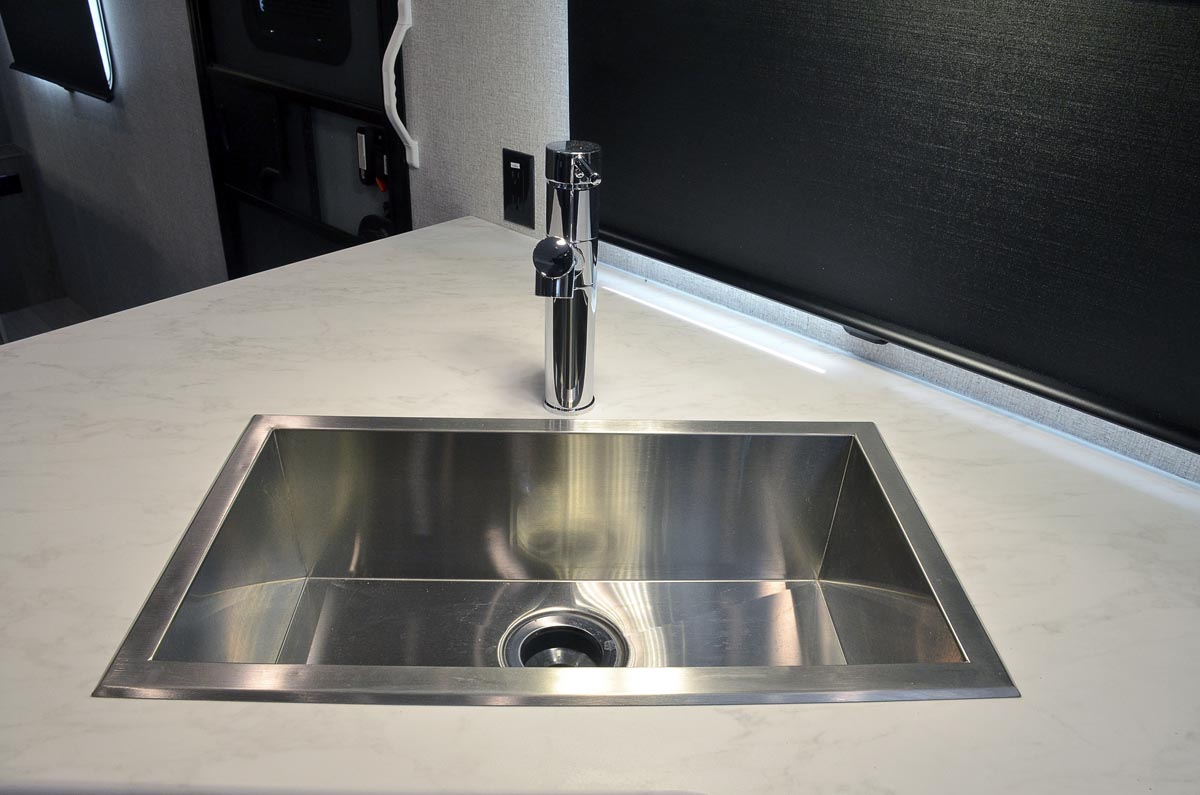

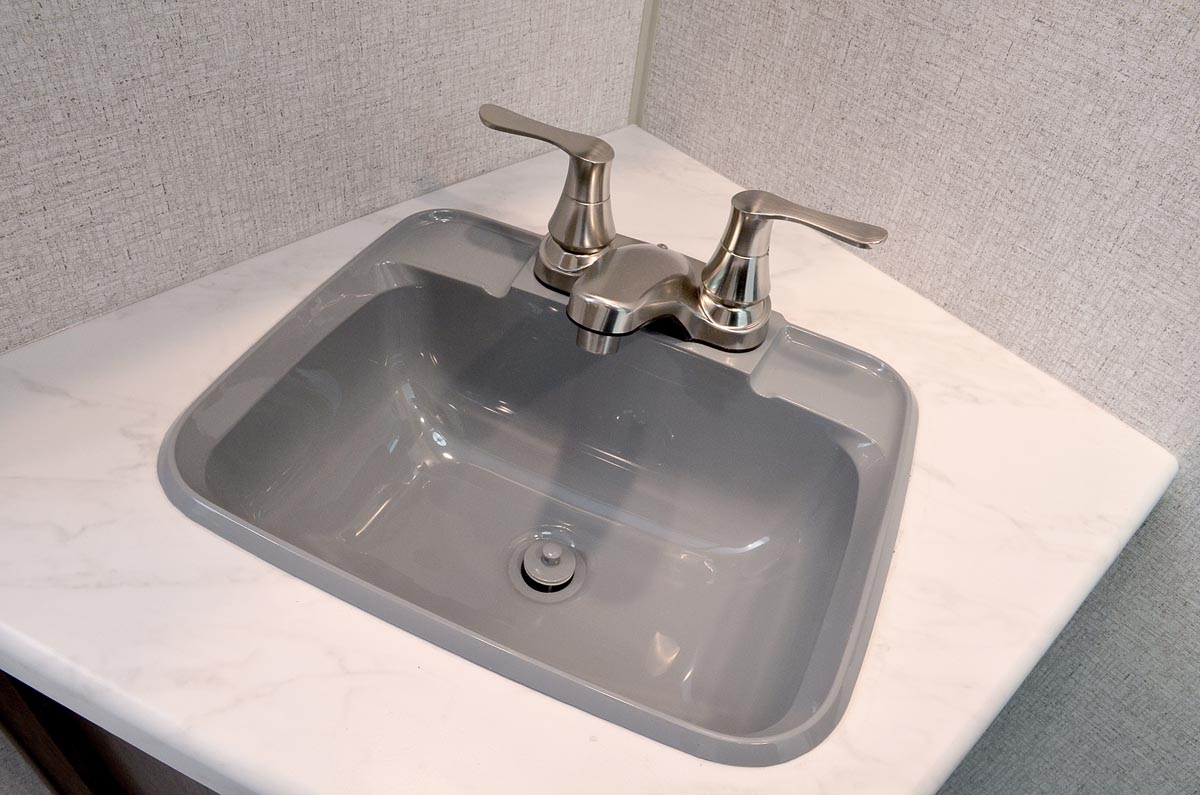

Stainless Steel Sink / Hi-rise, Pull-out Kitchen Faucet
Foldable Drying Rack Sink Cover

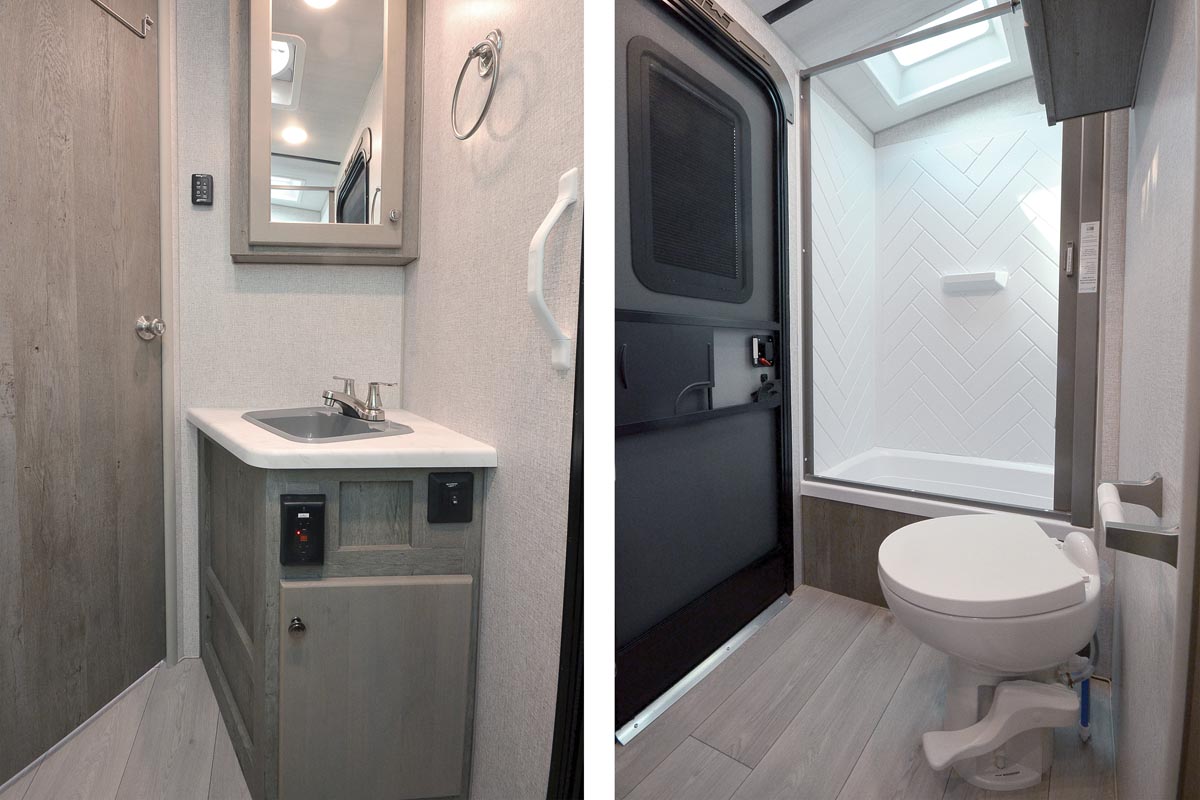

Porcelain, Foot-Pedal Toilet / Bath Skylight

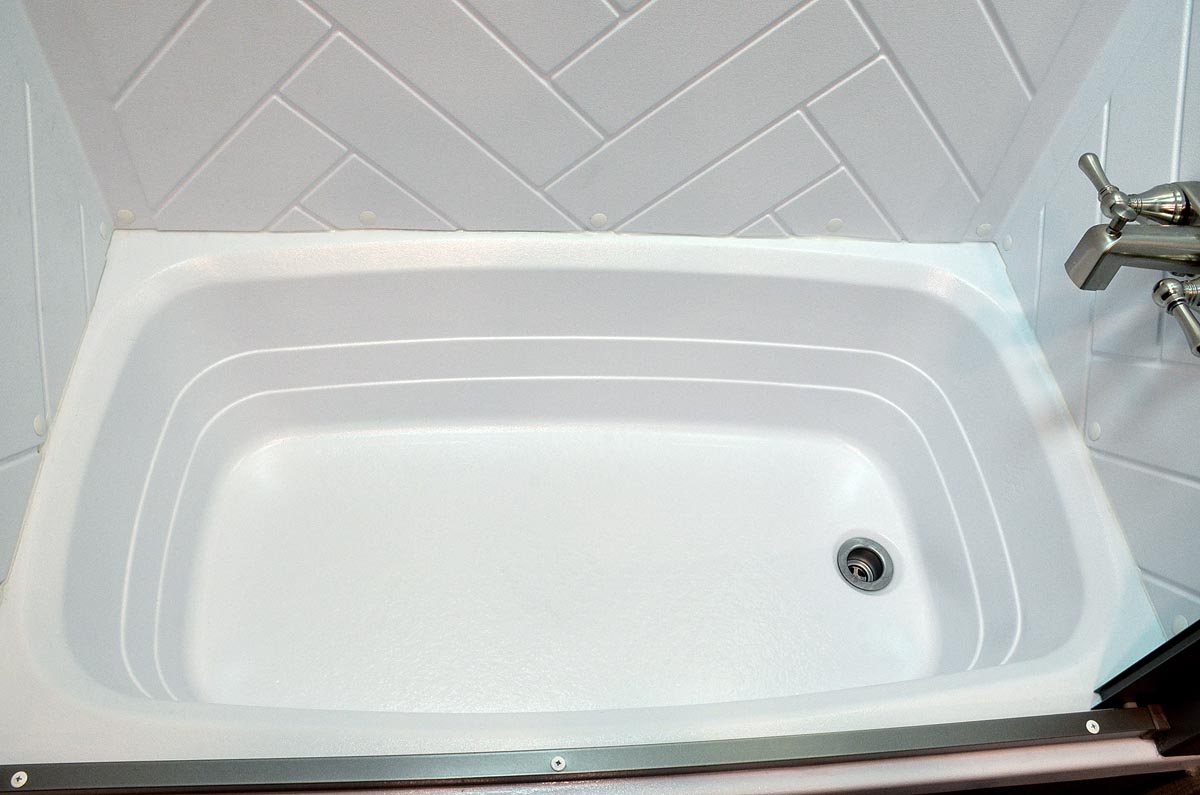

Brushed Nickel Shower Screen / Full Tub

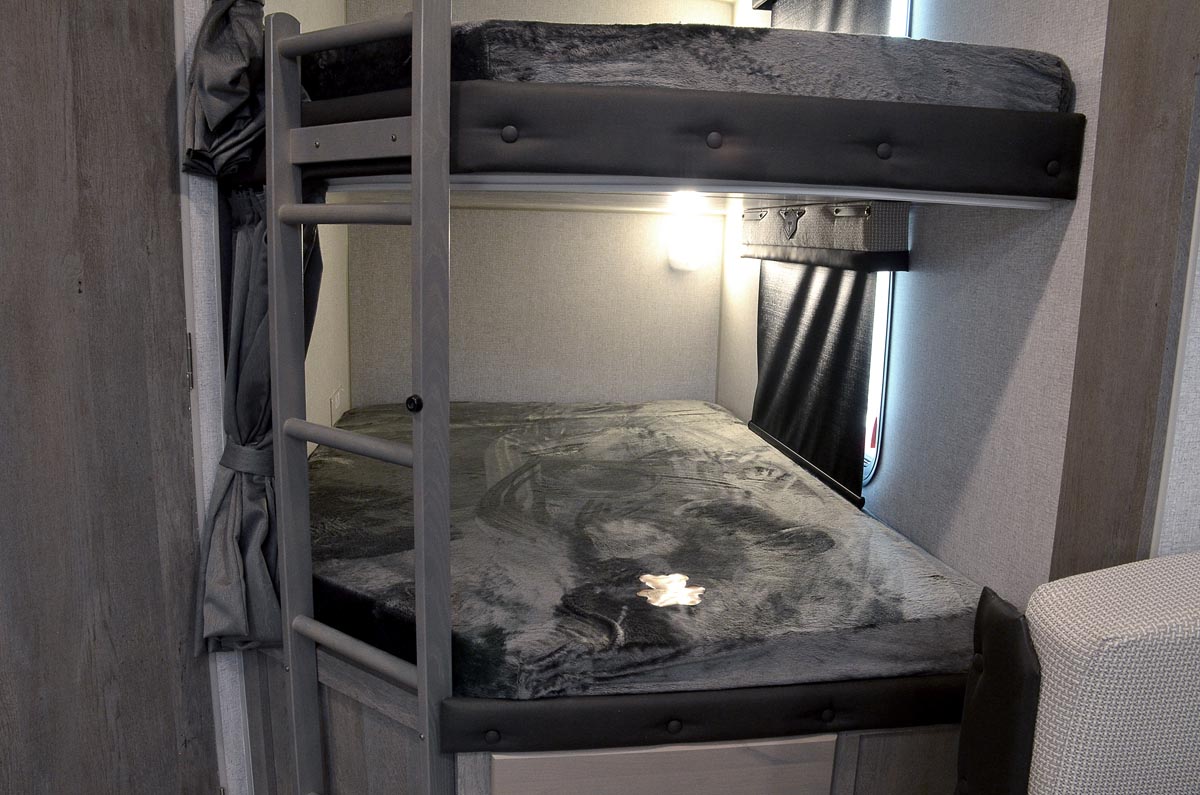

Double Over Double Bunkhouse

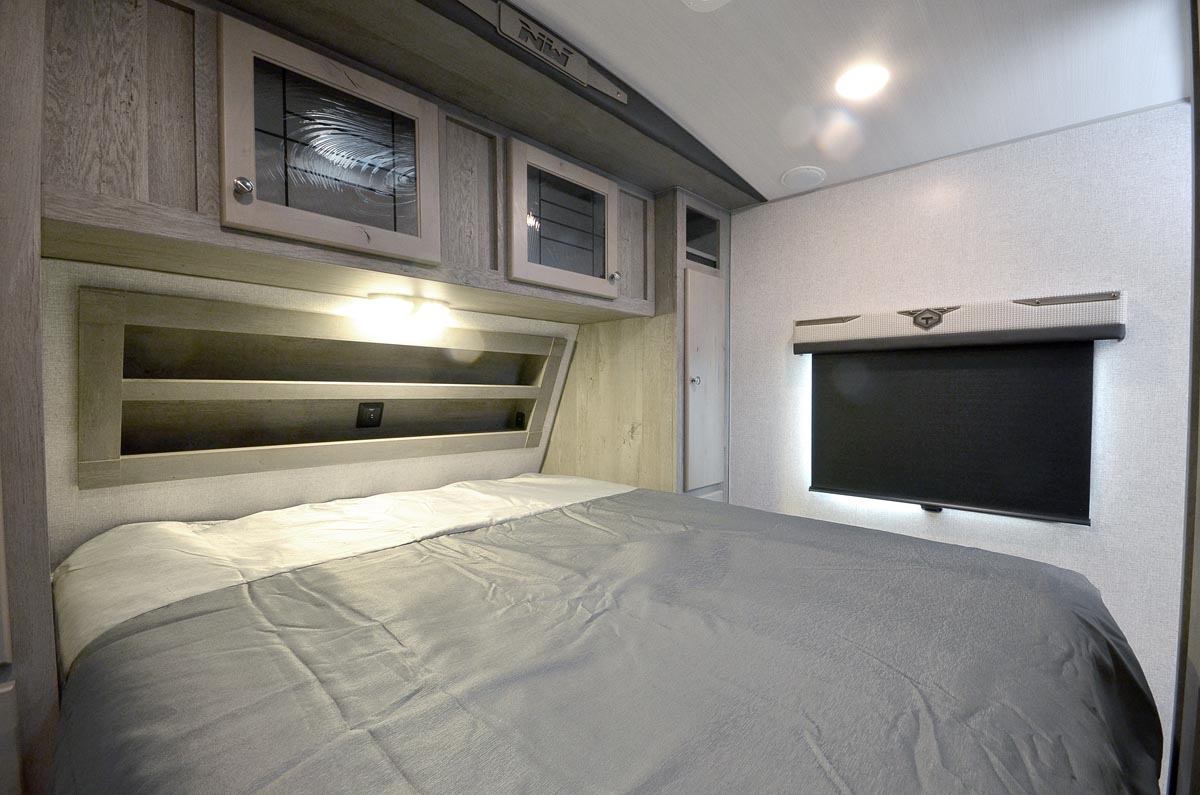

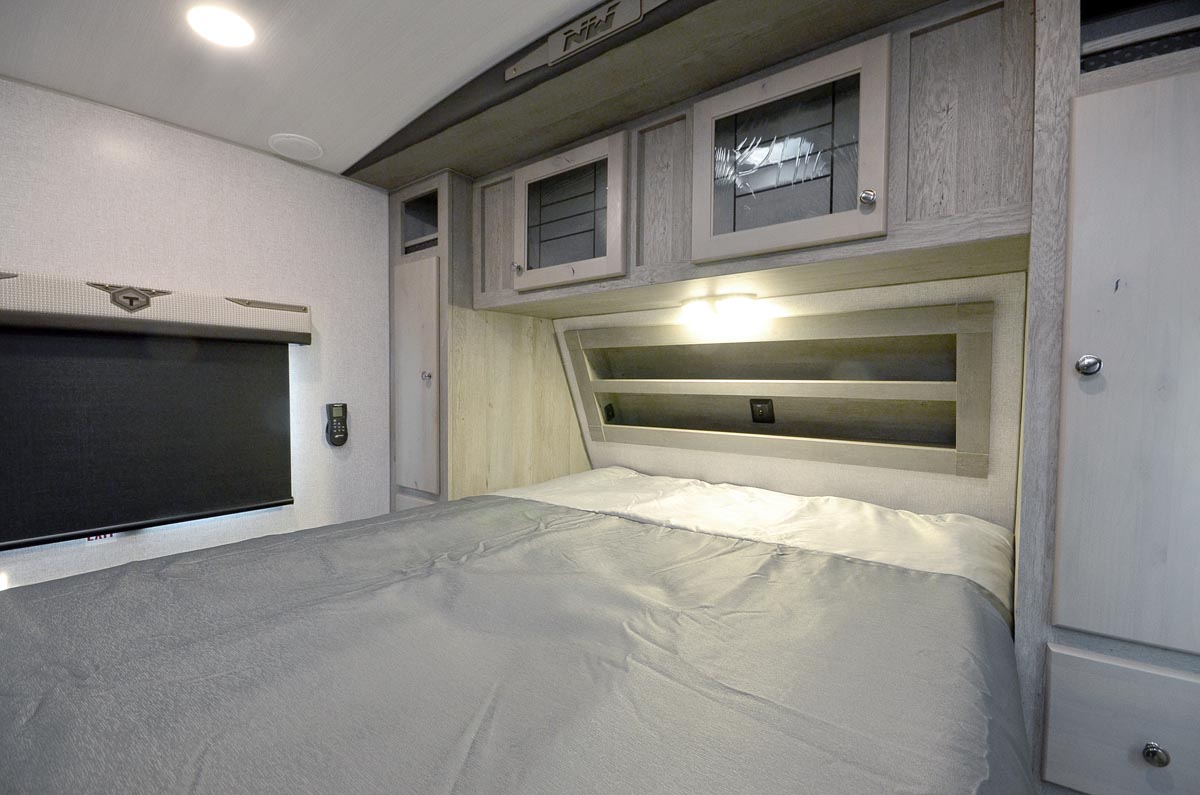

NW TruRest Queen Mattress w/ Bedspread
Below Bed Storage
USB Charging Ports & 110 Outlets on Both Sides of Bed
Recessed Storage Headboard
Options
Slide Out Topper
Weatherguard Main Awning
CSA (Canadian Dealers Only)

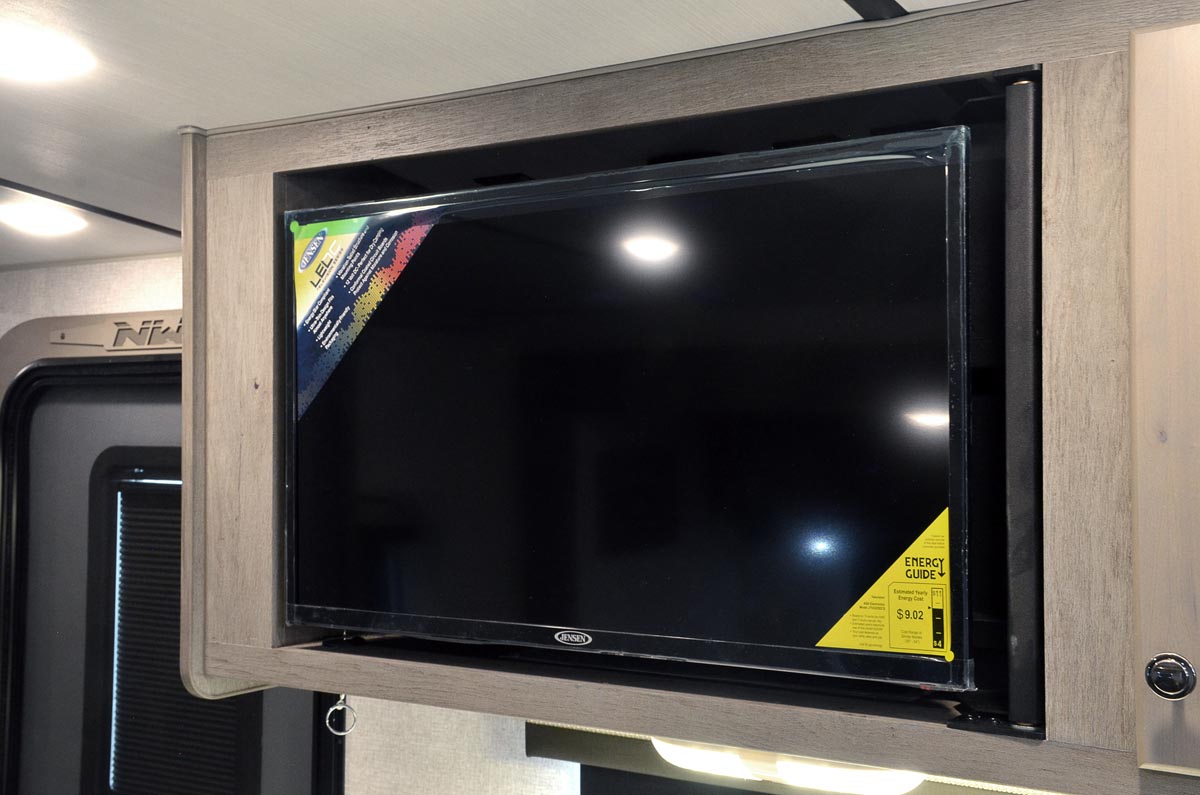

32″ 12v LED TV
15K Air Conditioner w/ Ducting
Premium Fan Vent – Bedroom
Premium Fan Vent – Kitchen
Premium Fan Vent – Bathroom (Exhaust Only)
Holding Tank Heat Pads (All Tanks)
Pwr Dual-Motor Sliding Stab Jacks, Front & Rear
3.6 Onan LP Generator
SolX 6 + 200 Watts of Solar
SolX 8 + 400 Watts of Solar
SolX 10 + 600 Watts of Solar

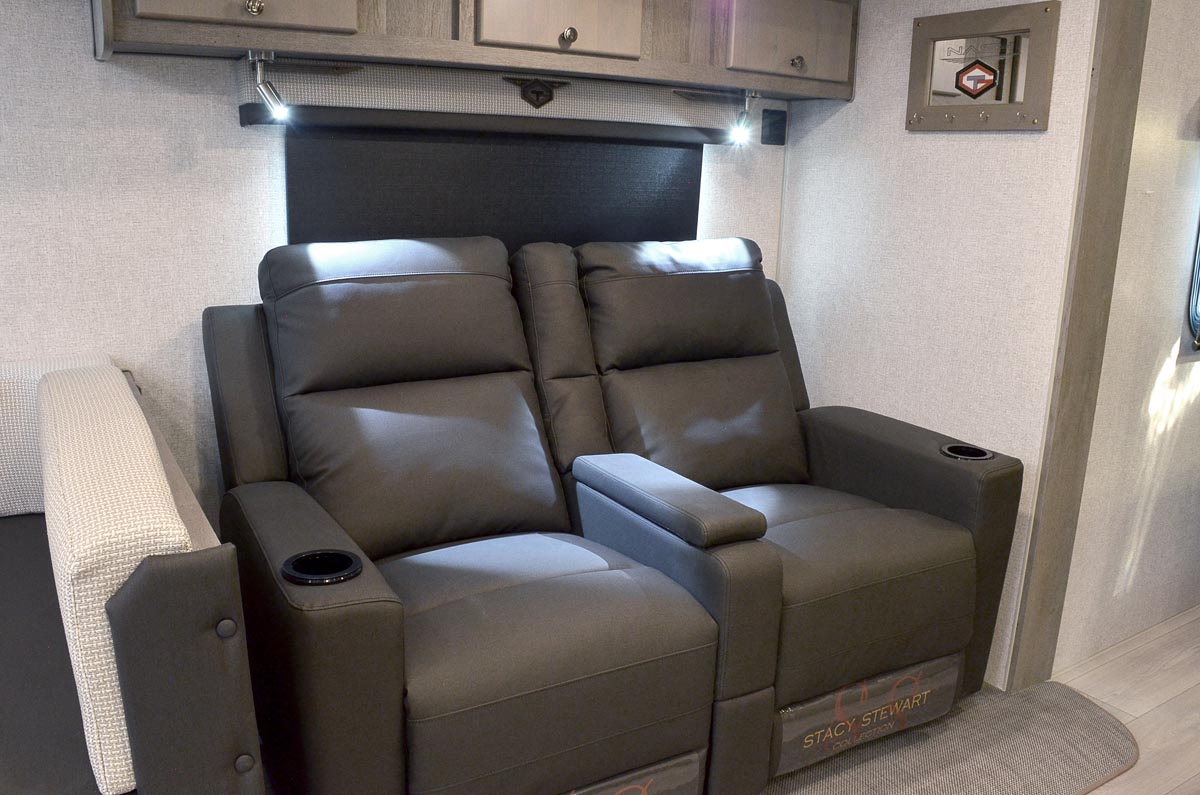

Theater Seating 68″ (Del. Jackknife)
RV BBQ
Rear View Camera
Gateway Router
