Specifications:
Dry Axle Weight (approx. Lbs.): 7083
Dry Hitch Weight (approx. Lbs.): 1512
Net Carrying Capacity: 4205
Gross Dry Weight (approx. Lbs.): 8595
Gross Vehicle Weight (GVWR) – Lbs.: 12800
Exterior Length (approx. w / hitch): 30’2″
Exterior Height (approx. w/AC): 13’0″
Exterior Width (approx.): 8’6″
Tire Size: ST235/80R16
Load Range: E
Fresh Water Capacity (w/water heater, approx. gal.): 100
Gray Water Tank (approx. gallons): 47
Black Water Tank (approx. gallons): 50
LPG Capacity (approx. lbs): 60
Sleeping Capacity: 6
CSA – Canadian Dealers Only: Yes
Auto Ignition Furnace (1,000 BTUs): 30
Features/Options:
Standard Features
Northwood Built Ironhorse Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
Corona Treated Fiberglass
Laminated, Multi-Layered Substrate Walls
High Density Block Foam Insulation
Cathedral Arched Ceiling
E-Z Lube Axles
Shocks On All Four Wheels
16″ Aluminum Wheels/ Tires & Chassis Mounted Spare
Stabilizer Jacks / MORryde Step Above w/Flip Tread
Four Seasons Insulation With R-18 Ceiling
Aerodynamic Front Fiberglass Cap w/ Di Plate Gravel Guard
LED Interior & Exterior Lighting / Easy Access LP Cover
R/S High Intensity LED Exterior Work Light
D/S High Intensity LED Motion Sensor Exterior Work Light
Rear View Camera Ready
LED Rear Cargo Light Bar / Exterior Ladder
LPG Quick Connect & Black Water Flush System
Entry Door Friction Hinge
Exterior Shower / Omni-Directional TV Antenna
10 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
12V LED Awning w/Adjustable Pitch
12-Volt Power Tongue Jack / Toy Lock
LED Outside Speakers / Battery Disconnect
Thermal Pane Windows Solar Reflective
SolX 4 – 400 Watt Solar Package
Satellite Ready
Generator 4.0 Onan Gas / 40 Gallon On-Board Fuel Station
On Board Air Compressor / On Board Pressure Washer
Interior Command Center
Roller Bearing Drawer Glides
Slow Rise Night Shades
Premium AM/FM Sound System w/Amp & Bluetooth
Premium Sound Outside Speakers/Battery Disconnect
Smoke, LPG & CO Leak Detectors / Charge Wizard w/Li Switch
32″ 110v LED Smart TV Living Room
DFox Key Rack / Custom One Piece Formed Countertops & Tables
Solid Surface Kitchen Countertops
R/S Roll Over Sofa D/S 2 Swivel Rockers w/Table
Residential-style Microwave w/Air Fryer
High Output 3-Burner Range & Cover
10 Cubic Foot 12 Volt Stainless Steel Refrigerator
Dayliter Kitchen Skylight w/ Shade
USB Charging Ports & 110 Outlets on Both Sides of Bed
Porcelain, Foot-Pedal Toilet / Bath Skylight / Full Tub
Premium Fan Vent in Bath (Exhaust Only) / Reinforced Ramp Door
NW TruRest Queen Mattress w/ Bedspread
Premium Fan Vent with Remote/Tstat/Rain Sensor in Bedroom
Electric Bed with First Bunk and Ladder
2 Premium Fan Vent with Remote/Tstat/Rain Sensor over Cargo Area
Rubber Cargo Area Decking / Roll Up Carpet Kit
Rear Screen Wall / Ramp Cable Kit
Options
Rear Electric Awning
Weatherguard Main Awning
CSA (Canadian Dealers Only)

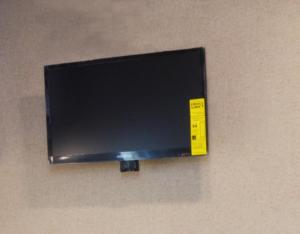

32″ 110v LED TV Bedroom
15K A/C w/ Ducting
10 Gal LPG w/Soft Cover
D/S Rollover Sofa (Del. 2 Swvl. Rockers w/Table)
-No Charge
Holding Tank Heat Pads (All Tanks)
2nd Bunk For Electric Bed
Reversible Rear Lounge
SolX 6 + 200 Watts of Solar
SolX 8 + 400 Watts of Solar
5 Point Leveling System – HD
Winegard Carryout G2+ Sat Dish (DISH/DIRECT)
Opposing Convertible Sofas
RV BBQ
Rear View Camera
Gateway Router
