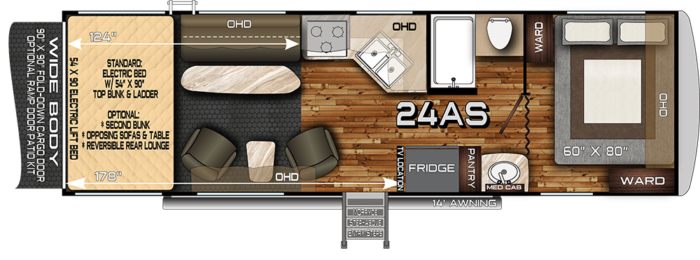

24AS DIMENSIONS

Available Options Photo Gallery

Specifications:

Dry Axle Weight (approx. Lbs.): 6770
Dry Hitch Weight (approx. Lbs.): 1533
Net Carrying Capacity: 3697
Gross Dry Weight – Lbs.: 8303
Gross Vehicle Weight (GVWR) – Lbs.: 12000
Exterior Length (approx. w / hitch): 30’2″
Exterior Height (approx. w/AC): 13’0″
Exterior Width (approx.): 8’6″
Tire Size: ST235/80R16
Load Range: E
Fresh Water Capacity (w/water heater, approx. gal.): 100
Gray Water Tank (approx. gallons): 47
Black Water Tank (approx. gallons): 50
LPG Capacity (approx. lbs): 60
Sleeping Capacity: 6
CSA – Canadian Dealers Only: Yes
Auto Ignition Furnace (1,000 BTUs): 30

Features/Options:

Standard Features

Northwood Built, Independently Certified, Off-Road Chassis
Fully Welded, Thick-Wall Aluminum Frame Construction
One-Piece, Corona Treated, Continuous Fiberglass
Hot, Polyurethane Laminated, Multi-Layered Substrate Walls
High Density Block Foam Insulation
Cathedral Arched Ceiling
E-Z Lube Axles w/Nev-R Adjust Forward, Self Adjusting Brakes
Shocks On All Four Wheels
16″ Aluminum Wheels/ Tires & Chassis Mounted Spare
Stabilizer Jacks / MORryde Step Above Entry Step
All-Conditions Insulation With R-18 Ceiling
R-15 Reflective Foil Insulation in Roof
4 Season Package – Incl. Heated Enclosed Tanks
Diamond Plate Front Gravel Guard / Easy Access LP Cover
LED Interior & Exterior Lighting
R/S High Intensity LED Exterior Work Light
D/S High Intensity LED Motion Sensor Exterior Work Light
Motion Sensor LED Porch Light
LED Rear Cargo Light Bar / Roof Rack & Ladder
LPG Quick Connect & Black Water Flush System
Large Exterior Entry Grab Handle / Entry Door Friction Hinge
Exterior Shower / TV Antenna with Wi-Fi Extender Ready
Semi-Automatic Winterization/By-Pass System
10 Gal DSI Gas/Elect Quick Recovery Water Heater
13.5m BTU Air Conditioner w/Condensation-Resistant Ducting
Carefree Travel’R 12V Awning w/Adjustable Pitch Hardware
12-Volt Power Tongue Jack
LED Outside Speakers with Remote/Battery Disconnect
Solar Reflective Windows / Magnetic Catches
20 Watt Solar Panel / Sidewall Solar Port
Satellite Ready / Solar Ready
Generator 4.0 Onan Gas / 40 Gallon On-Board Fuel Station
On Board Air Compressor / On Board Pressure Washer
Interior Command Center / Marine Grade Pedestal Table Hardware
Roller Bearing Drawer Glides
Fabric Day/Night Shade Window Treatments
Premium AM/FM/CD/ DVD Sound System w/Amp & Bluetooth
Premium Sound Outside Speakers/Battery Disconnect
Smoke, LPG & CO Leak Detectors / Charge Wizard
32″ 110v LED Smart TV Living Room
Custom DFox Signature Key Rack
Solid Surface Kitchen Countertops
R/S Roll Over Sofa D/S 2 Swivel Rockers w/Table
Stainless Steel Appliances
Residential, Built-In Microwave
High Output 3-Burner Range with Range Cover
Extra Large Fridge (8 Cu Ft) w/ Stainless Look Panels
Dayliter Kitchen Skylight w/ Shade
USB Charging Ports on Both Sides of Bed
Glazed, Raised Panel Cabinet Doors & Drawers
Porcelain, Foot-Pedal Toilet / Bath Skylight / Full Tub
Shower Screen / Reinforced Ramp Door
NW TruRest Queen Mattress w/ Bedspread
Electric Bed with First Bunk and Ladder
Fan Vent with Remote/Tstat/Rain Sensor over Cargo Area
Rubber Cargo Area Decking / Roll Up Carpet Kit
Rear Screen Wall / Ramp Cable Kit



Options

Alumaguard Main Awning
CSA (Canadian Dealers Only)

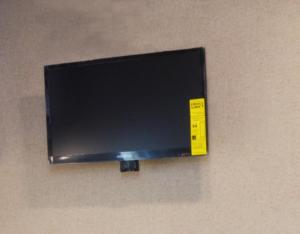

24″ 110v LED TV Bedroom
15K A/C w/ Ducting
Fan Vent – Bathroom (Exhaust Only)
10 Gal LPG w/Soft Cover
Thermal Pane Windows – Solar Reflective
D/S Rollover Sofa (Del. 2 Swvl. Rockers w/Table)
-No Charge
Holding Tank Heat Pads (All Tanks)
Toy Lock
FanVent w/Rmt/Tstat/RainSnsr (Bdrm/2nd Cargo)
2nd Bunk For Electric Bed
Reversible Rear Lounge
60 Watt Solar Panel
100 Watt Solar Panel
80 Watt Portable Solar Panel Kit
170 Watt Solar Panel
Winegard Carryout G2+ Sat Dish (DISH/DIRECT)
Aussie Grill w/ Bracket
Opposing Convertible Sofas
Rear View Camera
Wi-Fi Extender
